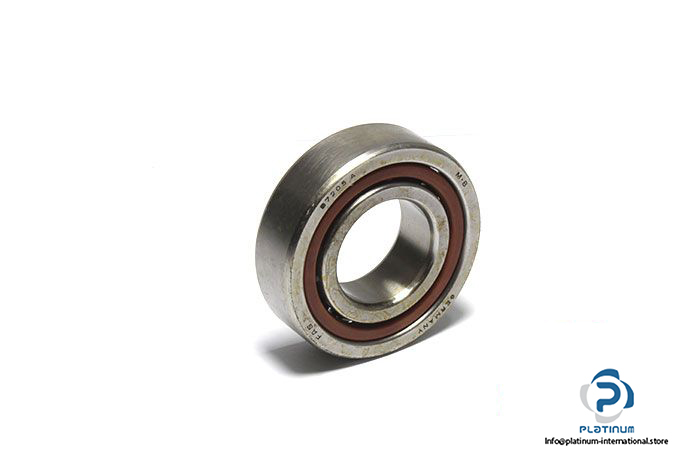

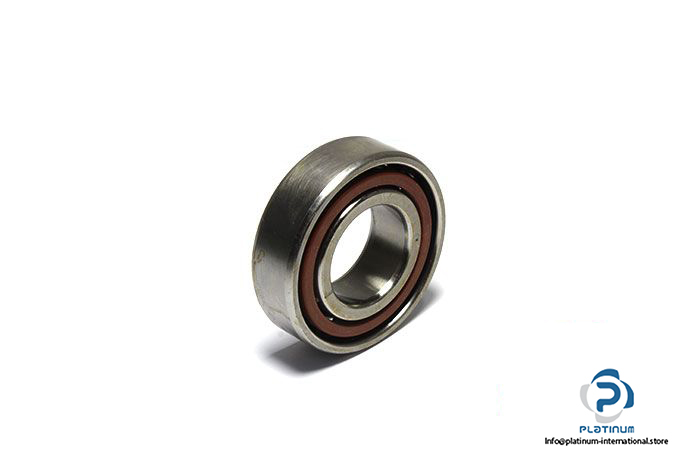

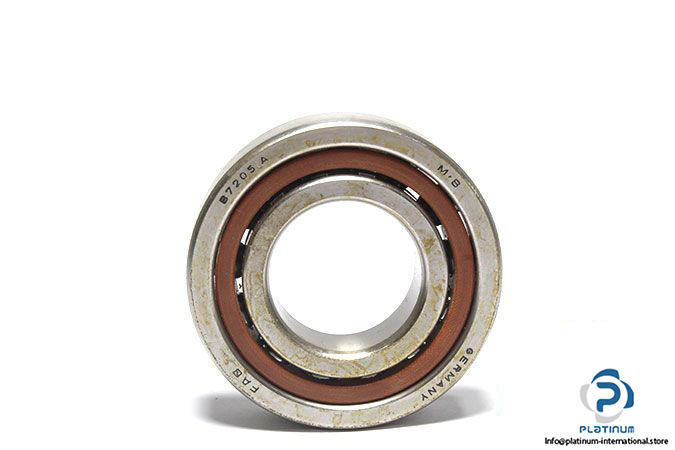

FAG B7205CA Angular Contact Ball Bearing

Manufacturer: FAG ‎

Type: Angular contact Ball Bearing

Part No: B7205C.TPA.P4.UL

Replaces: B7205-C-T-P4S-UL, B7205C.T.P4S.UL



Bore Diameter: 25 mm

Outer diameter: 52 mm

Width: 15 mm

Chamfer rmin: 1 mm

Contact Angle: 15 °

Basic load ratings:

Dynamic Cr: 14.8 kN

Static C0r: 6.1 kN

Limiting Speed – Grease: 28000 rpm

Tolerance: tolerance class P4S, FAG standard better than P4 to DIN 620

Cage: Laminated fabric cage

Weight: 0.12 kg
