Adapter Sleeve

The FAG H2309 adapter sleeve features a 40 mm bore diameter, M45x1.5 thread, and 1:12 taper. Designed for mounting tapered bore bearings securely onto cylindrical shafts with KM9 locknut and MB9 fuse.

Manufacturer
FAG
SKU
1075829
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

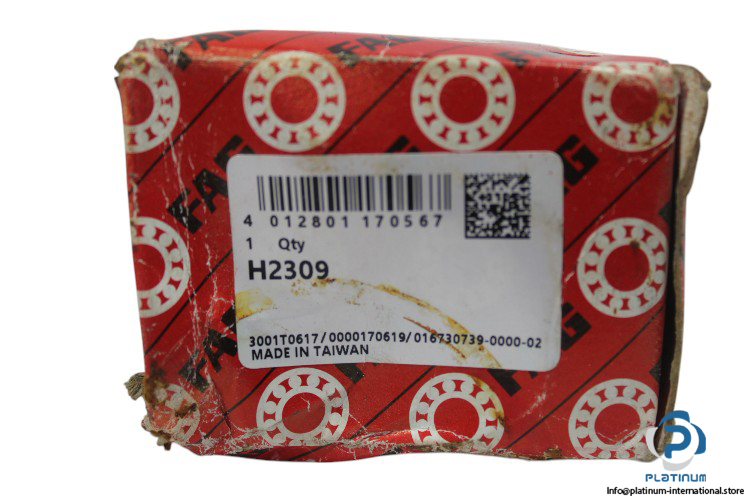

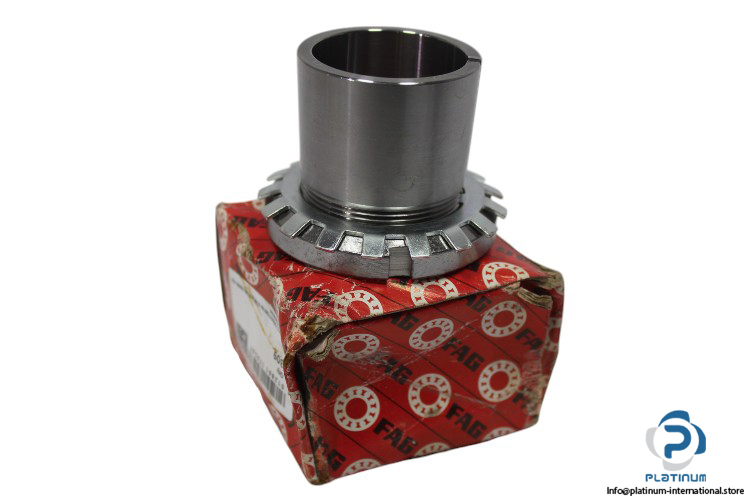

FAG H2309 Adapter Sleeve

The FAG H2309 Adapter Sleeve is designed to mount bearings with a tapered bore onto cylindrical shafts easily and securely. Featuring a robust construction and a precise 1:12 external taper, it ensures optimal fit and alignment in demanding mechanical assemblies.

Manufacturer: FAG

Type: Adapter Sleeve

Model: H2309

Bore Diameter d140 mm
Bore Diameter (Bearing)45 mm
Outer Diameter (Lock Nut)65 mm
Sleeve Length50 mm
Width (Nut and Lock)11.25 mm
Thread GM45x1.5
External Taper1:12
LocknutKM9
FuseMB9
