FAG KLM 11749-11710 Tapered Roller Bearing
New
In stock2 unitsReady to ship
Single Row Tapered Roller Bearing
Precision-engineered bearing with 17.462 mm bore and 39.878 mm outer diameter. Offers high load capacity, 20,100 rpm limiting speed, and reliable operation within -30 to 120°C range.bearingElementEquipmentFagHighIndustrialLoadMechanicalMotionPrecisionRollerrollingRotatingRowSingleSystemtapered
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

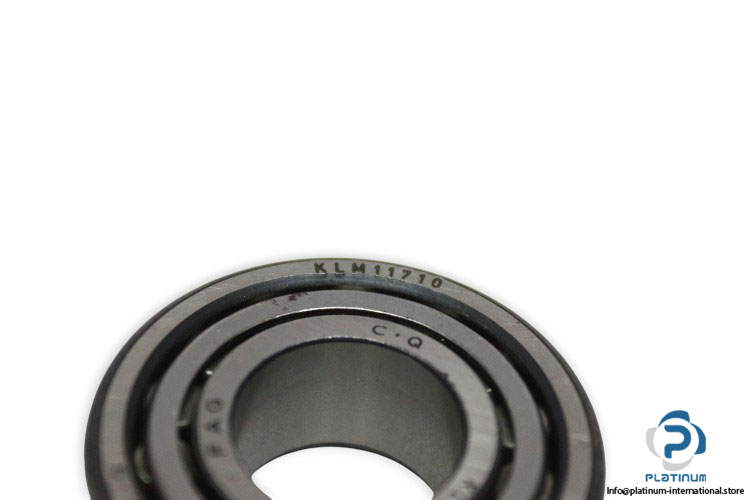

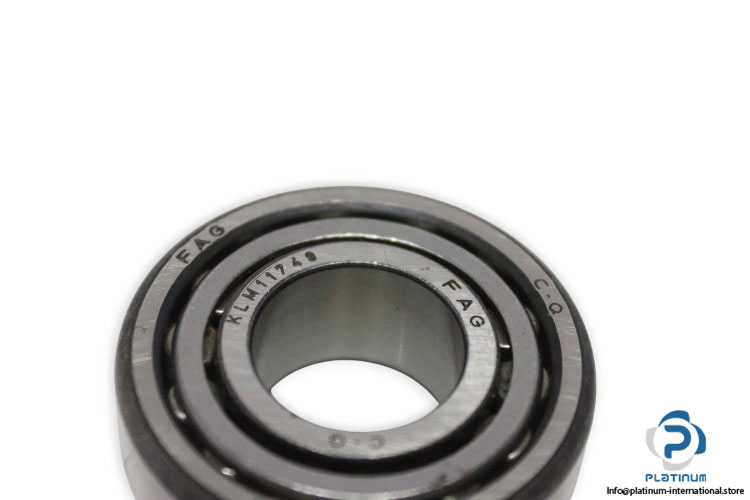

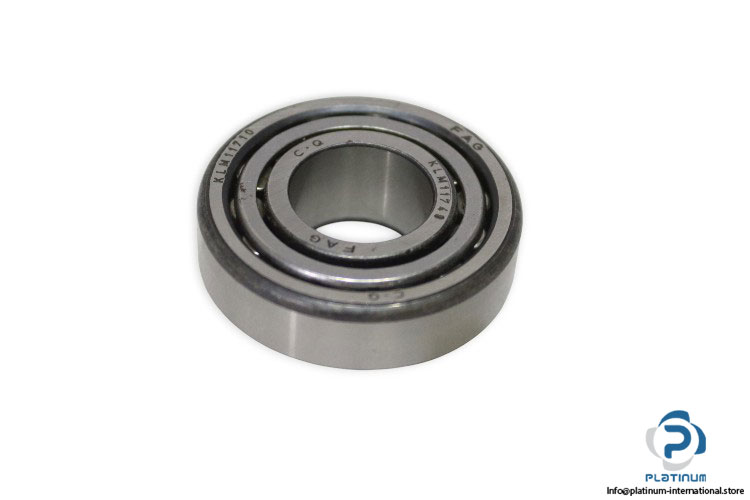

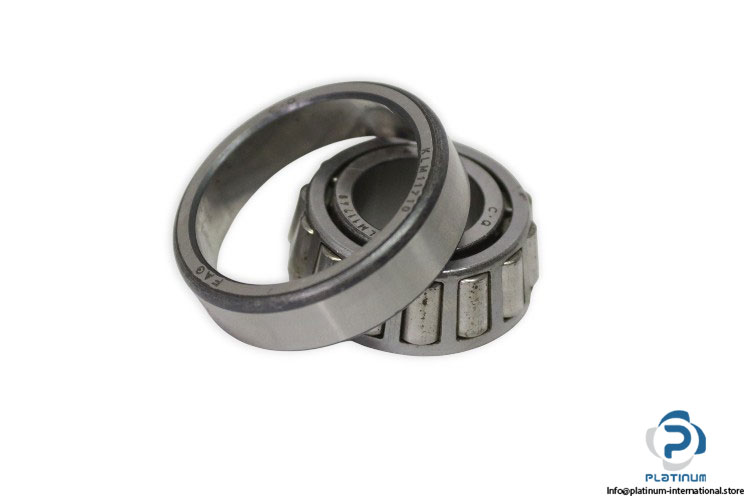

FAG KLM11749-11710 Single Row Tapered Roller Bearing
The FAG KLM11749-11710 is a precision-engineered single row tapered roller bearing designed for high load capacity and consistent performance in demanding mechanical applications.
Manufacturer: FAG
Type: Single Row Tapered Roller Bearing
Model: KLM11749-11710
Cone: KLM11749
Cup: KLM11710
| Design Units | Imperial |
| Bore Diameter (d) | 17.462 mm |
| Outer Diameter (D) | 39.878 mm |
| Total Width (T) | 13.843 mm |
| Cage | Sheet Steel Cage, Window Cage, Roller-Guided |
| Basic Dynamic Load Rating, Radial (Cr) | 21,200 N |
| Basic Static Load Rating, Radial (C0r) | 20,800 N |
| Fatigue Load Limit, Radial (Cur) | 2,220 N |
| Limiting Speed (nG) | 20,100 rpm |
| Thermal Speed Rating | 12,100 rpm |
| Operating Temperature | -30 to 120°C |
