FAG NJ2216E.M1.C3 Cylindrical Roller Bearing

Manufacturer: FAG

Type: Cylindrical Roller Bearing

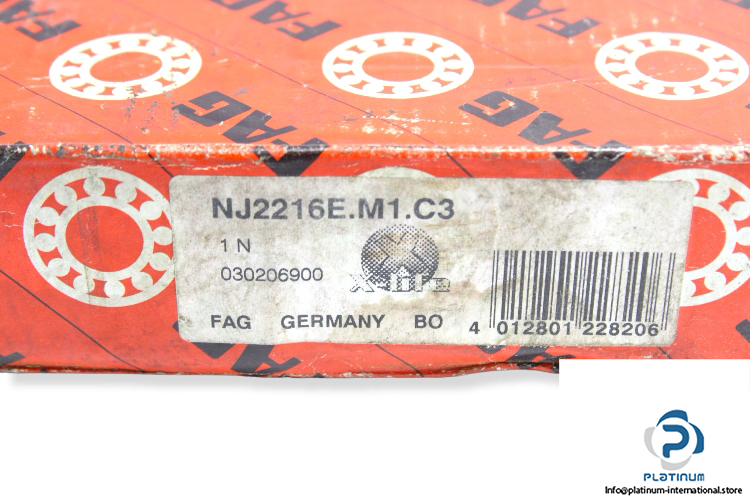

Model: NJ2216 E M1 C3

Replaces: NJ2216-E-XL-M1

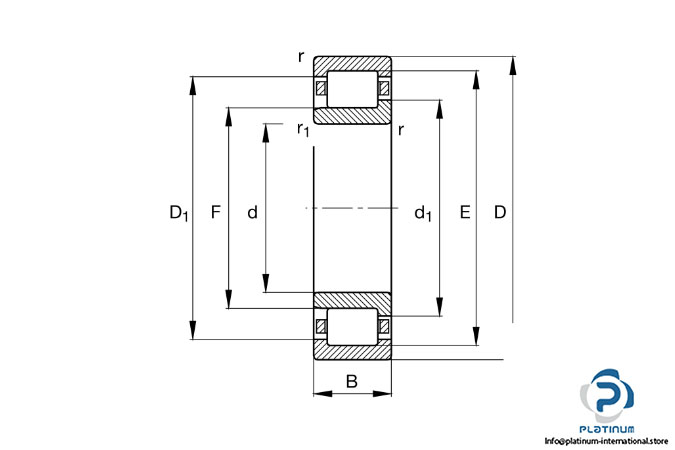

Dimensions:

Bore Diameter d: 80 mm

Outer diameter D: 140 mm

Width B: 33 mm

Basic load ratings, radial:

Dynamic C_r: 221000 N

Static C_0r: 244000 N

Fatigue load rating, radial: 44000 N

Limiting speed: 9000 rpm

Reference speed: 3400 rpm

Clearance: C3

Cage: M1, Two Piece Brass Cage Roller Guided

Operating temperature: -30 … +150 °C
