FAG NKJ 30/20 A Needle Roller Bearing Without Inner Ring
New
Available on request
Needle Roller Bearing Without Inner Ring
The Schaeffler FAG NKJ 30/20 A Needle Roller Bearing offers a compact, high-load solution with a 35mm under roller diameter, 45mm outer diameter, and 12,000 rpm speed.0001230/2035/2035mm45mmabearingdiameterFaghigh-loadIndustrialNeedleNKNKJOuterPrecisionRollerrpmSchaeffler
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

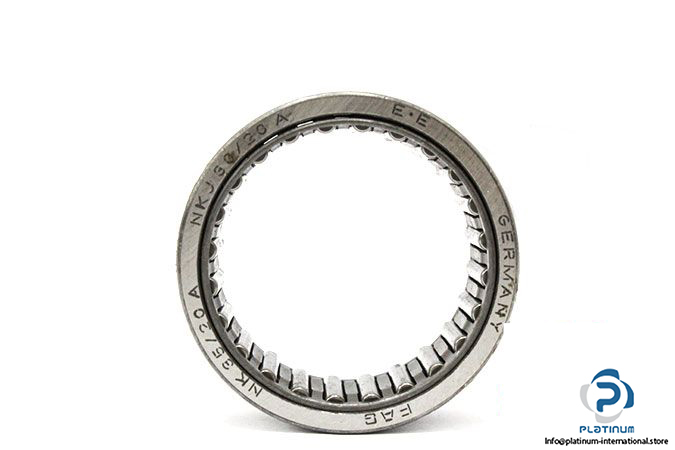

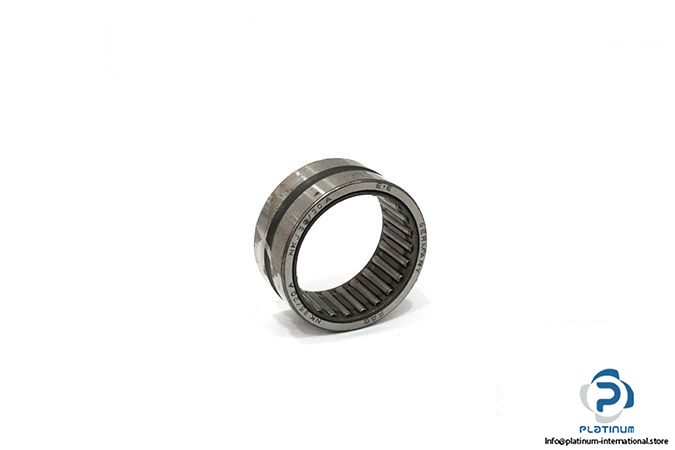

Schaeffler FAG NKJ 30/20 A Needle Roller Bearing Without Inner Ring
The Schaeffler FAG NKJ 30/20 A Needle Roller Bearing is designed for high load capacity and efficient performance in compact applications. Engineered without an inner ring, it offers a space-saving solution with excellent radial load resistance and high-speed capabilities.
Manufacturer: Schaeffler FAG
Type: Needle Roller Bearing Without Inner Ring
Model: NKJ 30/20 A
Model (Without Inner Ring): NK 35/20 A
Basic Load Ratings, Radial:
| Under Roller Diameter (FW) | 35 mm |
| Outer Diameter (D) | 45 mm |
| Width (B) | 20 mm |
| Dynamic (Cr) | 24.3 kN |
| Static (C0r) | 41.5 kN |
| Limiting Speed (nG) | 12,000 rpm |
