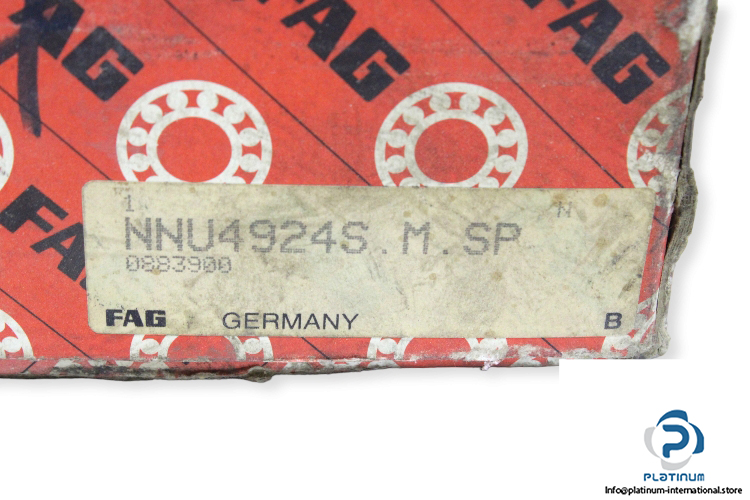

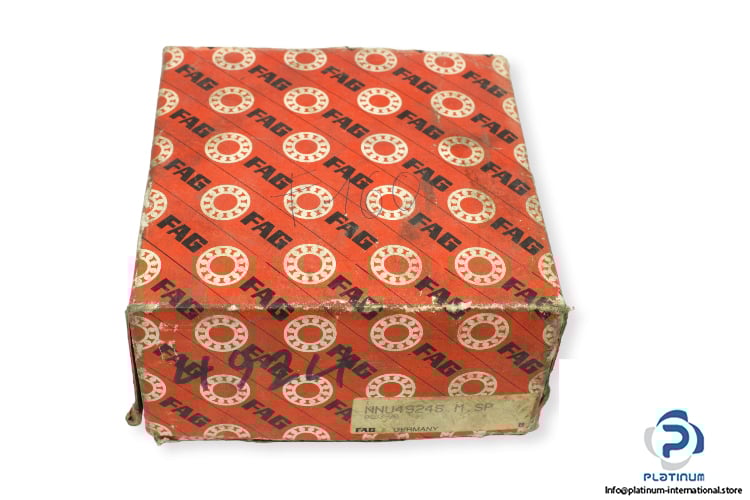

FAG NNU4924S.M.SP Cylindrical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Cylindrical roller bearing

Model: NNU4924-S-M-SP

Dimensions:

Bore Diameter d: 120 mm

Outer diameter D: 165 mm

Width: 45 mm

Dynamic load rating: 175000 N

Static load rating: 340000 N

Fatigue load limit: 41000 N

Limiting speed for grease lubrication: 4750 RPM

Limiting speed for oil lubrication: 5600 RPM

Radial internal clearance: C1

Tolerance class: SP

Cage material: Brass cage

Operating temperature: -30 … +150 °C
