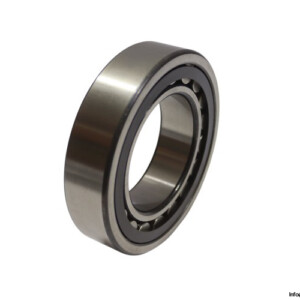

FAG NU2216E.TVP2.C3 Cylindrical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Cylindrical Roller Bearing

Model: NU2216 E TVP2 C3

Replaces: NU2216-E-XL-TVP2

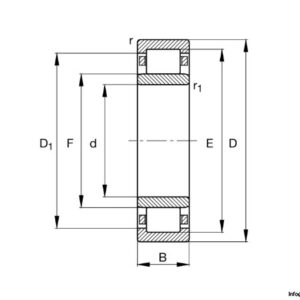

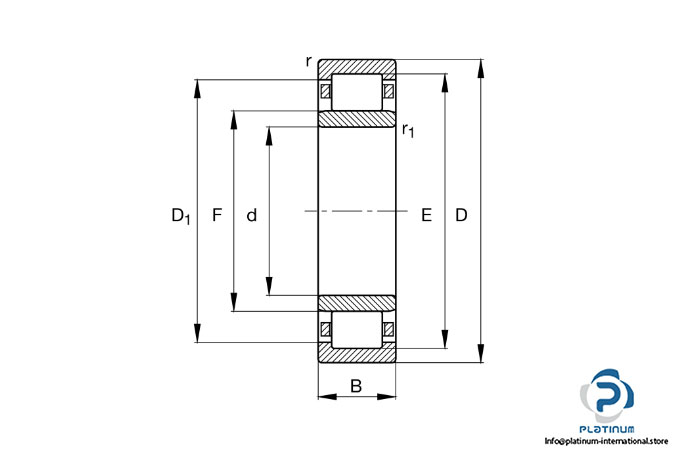

Dimensions:

Bore Diameter d: 80 mm

Outer diameter D: 140 mm

Width B: 33 mm

Basic load ratings, radial:

Dynamic C_r: 221000 N

Static C_0r: 244000 N

Fatigue load rating, radial: 44500 N

Limiting speed: 7000 rpm

Reference speed: 3400 rpm

Clearance: C3

Cage: TVP2, Solid Window Cage made from PA66

Operating temperature: -30 … +120 °C
