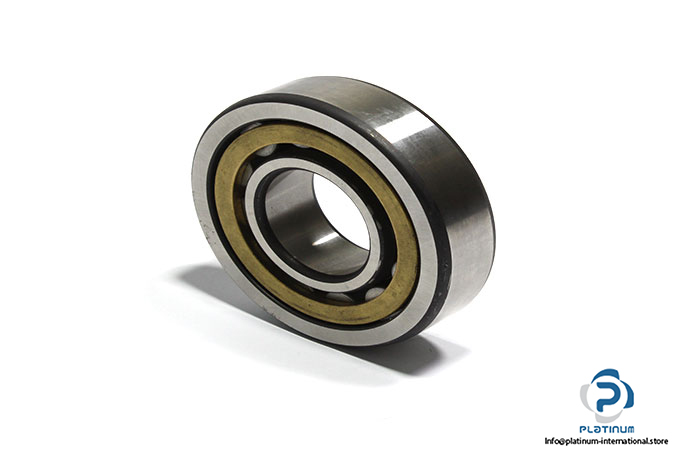

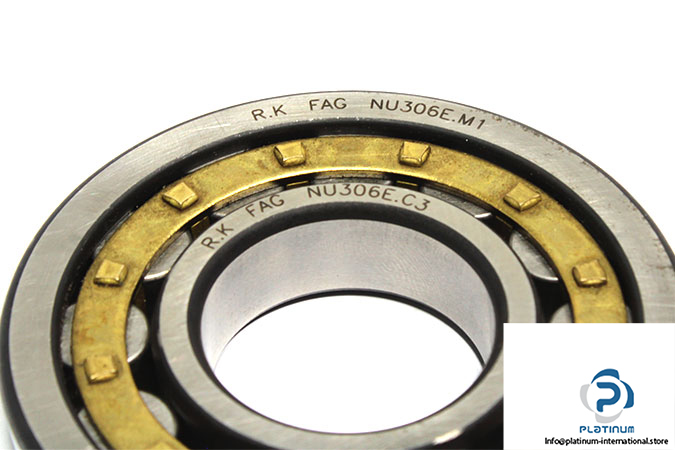

FAG NU306E.M1.C3 Cylindrical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Cylindrical Roller Bearing

Model: NU306 E.M1.C3

Replaces: NU306-E-XL-M1

Dimensions:

Bore Diameter: 30 mm

Outer diameter: 72 mm

Width B: 19 mm

Minimum chamfer dimension r_min: 1.1 mm

Basic load ratings:

Dynamic C_r: 61000 N

Static C_0r: 48000 N

Fatigue load limit: 6200 N

Limiting Speed Rating: 18500 rpm

Reference speed: 8900 rpm

Cage material: Two Piece Brass Cage Roller Guided

Operating Temperature: -30 °C… 150 °C
