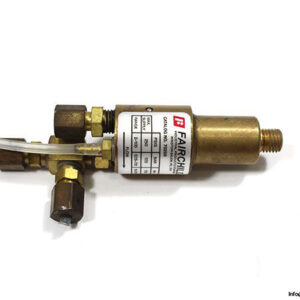

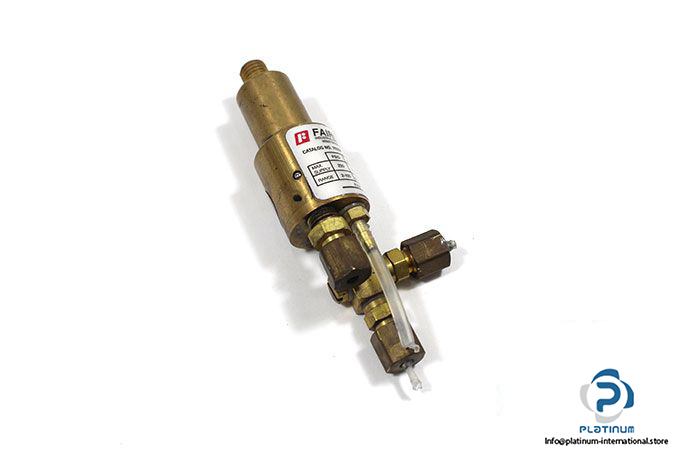

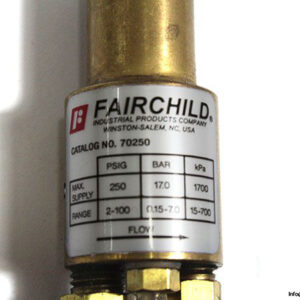

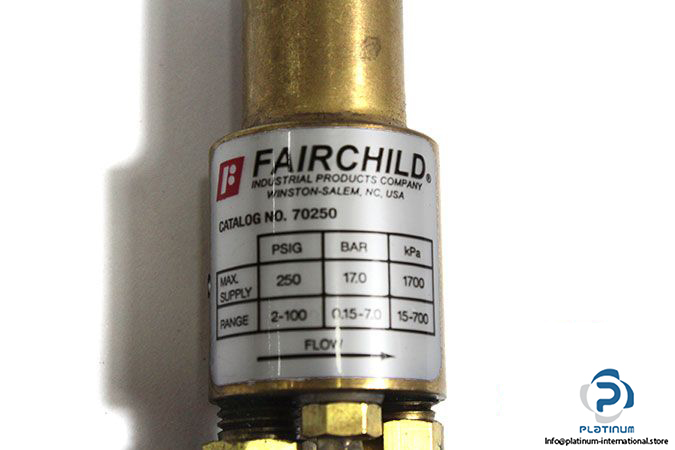

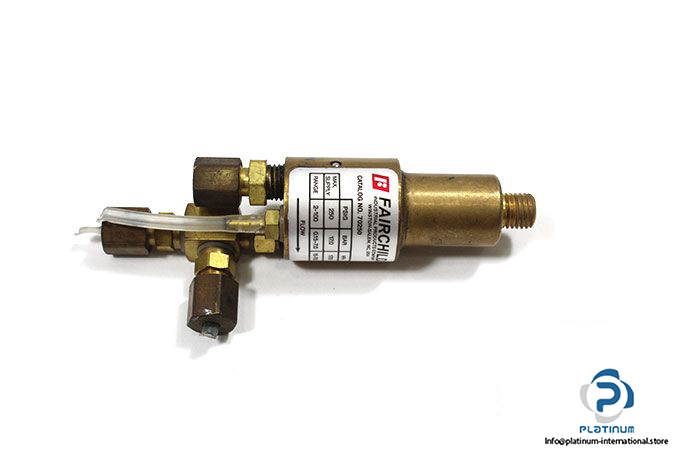

Fairchild 70250 Precision Pressure Regulator

Manufacturer: FAIRCHILD

Type: PRECISION PRESSURE REGULATOR

Part No.: 70250

Model: 70B

Application: Videojet 9550 spare parts

Features:

• The Model 70B controls a pressure signal for pneumatic instrumentation.
• This regulator is ideally suited for applications with limited space.
• Vibration damper provides low noise operation.
• Repeatability within 0.06 psig dead ended allows accurate setpoint control.
• Small size allows installation in restrictive spaces.

Pressure Range:2 … 100 PSIG

Max. Supply:250 PSIG

Exhaust Capacity: 0.28 SCFM

Materials

  Body material: Brass

 Diaphragms: Fluorocarbon

Temperature: -40 … 71 °C

Weight: 0.12 kg
