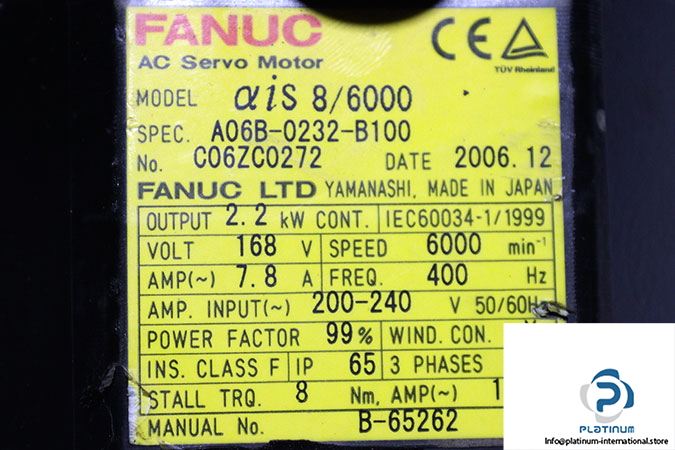

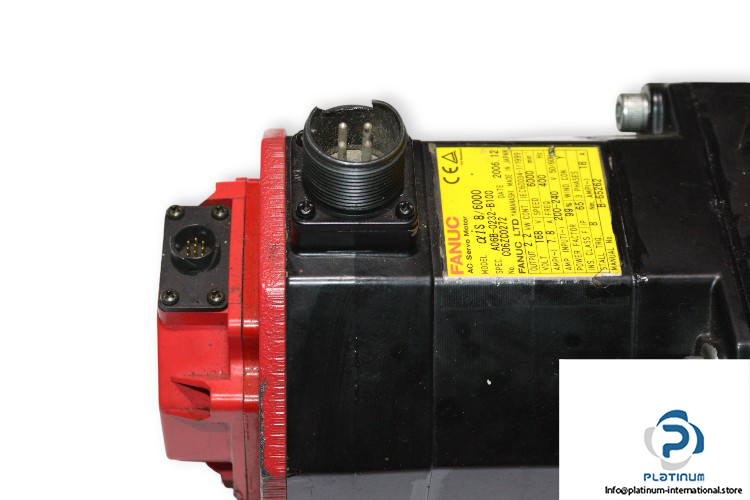

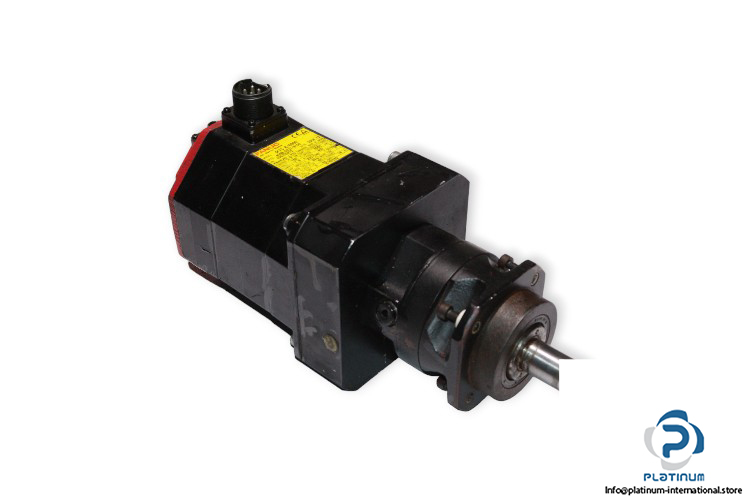

Fanuc A06B-0232-B100 AC Servo Motor

Manufacturer: Fanuc
Type: AC Servo Motors
Model: A06B-0232-B100

Rated Power [kW]: 2.2
Rated Voltage [V]: 168 Star
Input Voltage [V]: 200-240
Stall Torque [Nm]: 8
Stall Current [A]: 18
Rated Current [A]: 7.8
Frequency [Hz]: 400
Rated Speed [rpm]: 6000
Power Factor: 99%
Insulation Class: F
Protection Class [IP]: 65

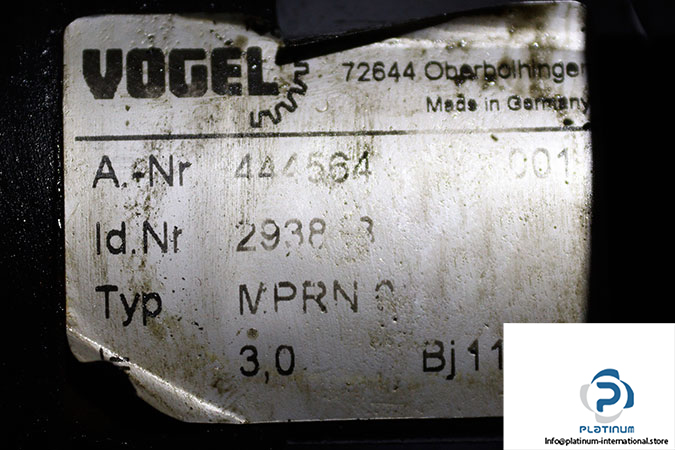

Attachment: Vogel MPRN Planetary gearbox
Manufacturer: Vogel
Type: Planetary gearbox
Model: MPRN
Size: 01
Ratio [i]: 3
Max. Acceleration Torque [Nm]: 1000
Lubrication: Oil lubrication
