FBJ UCF 214 Square Flange Ball Bearing Unit
New
In stock2 unitsReady to ship
Bearing Unit
Square flange FBJ bearing unit with 70 mm bore diameter and cast iron housing, designed for stable mounting and reliable industrial performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

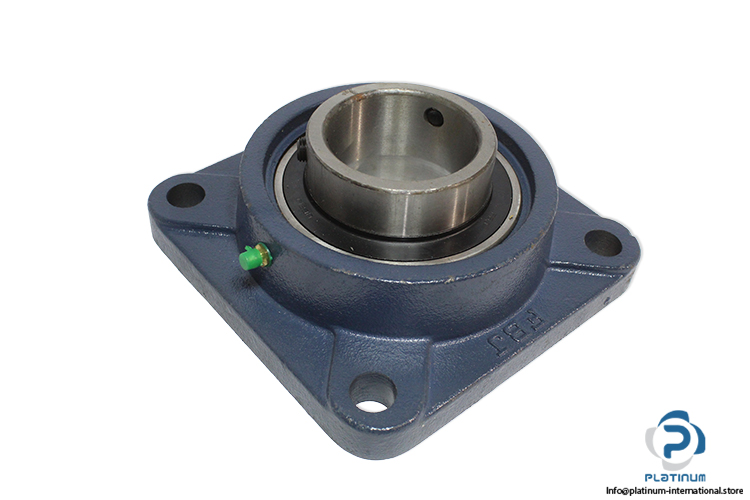

FBJ UCF 214 Square Flange Ball Bearing Unit
The FBJ UCF 214 Bearing Unit is a durable square flange mounted ball bearing designed for stable shaft support in industrial applications. Manufactured with a robust cast iron housing, it ensures reliable performance, easy installation, and long service life in demanding environments.
Manufacturer: FBJ
Type: Square Flange Ball Bearing Unit
Model: UCF 214

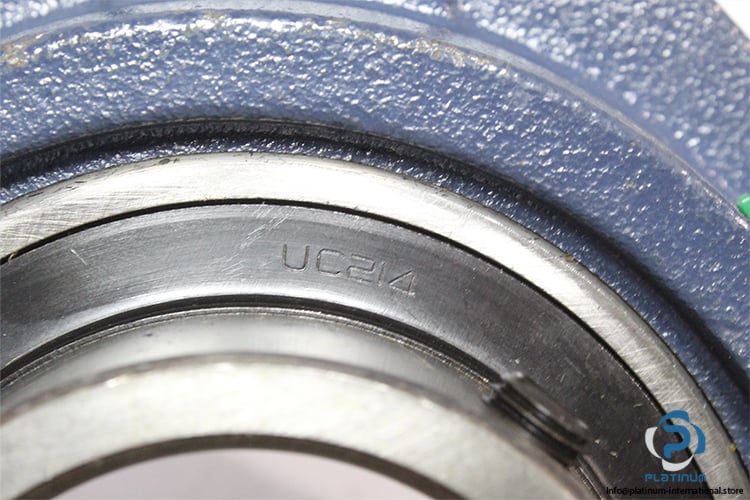

Bearing No.: UC214

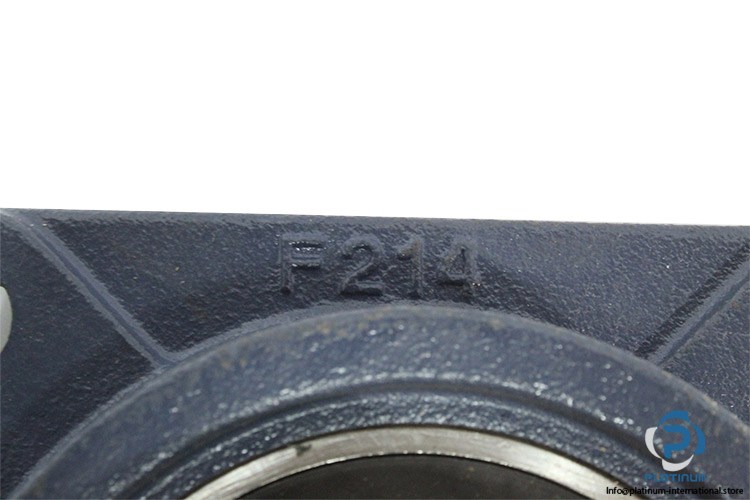

Housing No.: F214

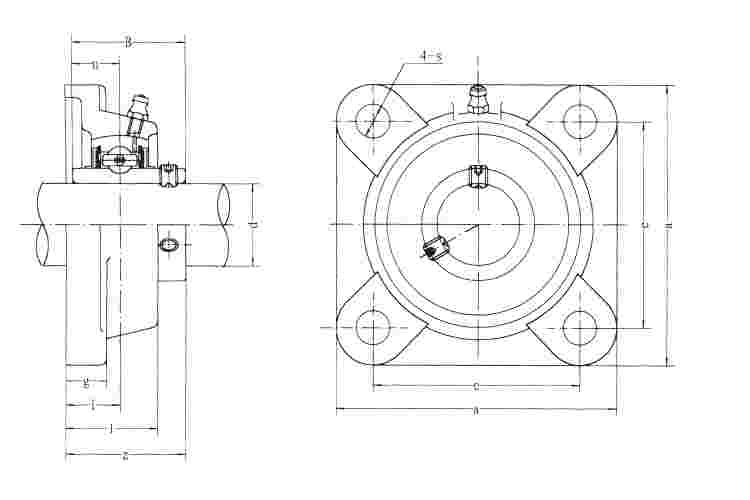

| Bore Diameter (d) | 70 mm |
| Bolt-To-Bolt Distance (e) | 152 mm |
| Overall Length (a) | 193 mm |
| i | 31 mm |
| g | 22 mm |
| I | 54 mm |
| S | 19 mm |
| Z | 75.4 mm |
| B | 74.6 mm |
| n | 30.2 mm |
| Mounting | Square Flange |
| Material | Cast Iron |
| No. Of Bolts | 4 |
| Recommendation | Ideal for applications requiring stable mounting and easy maintenance, making it a reliable choice for continuous industrial operation. |
