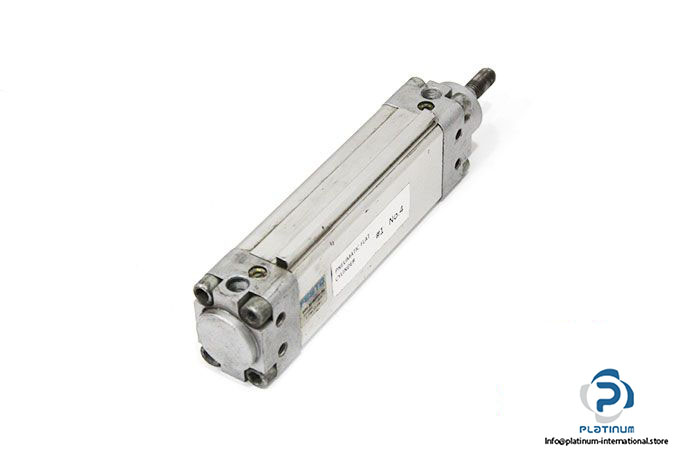

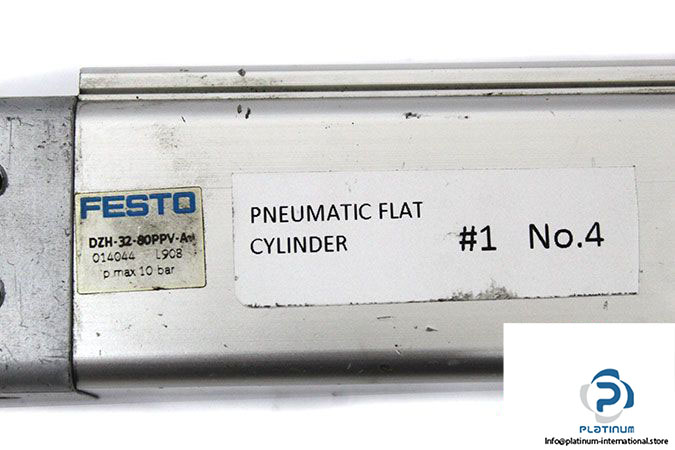

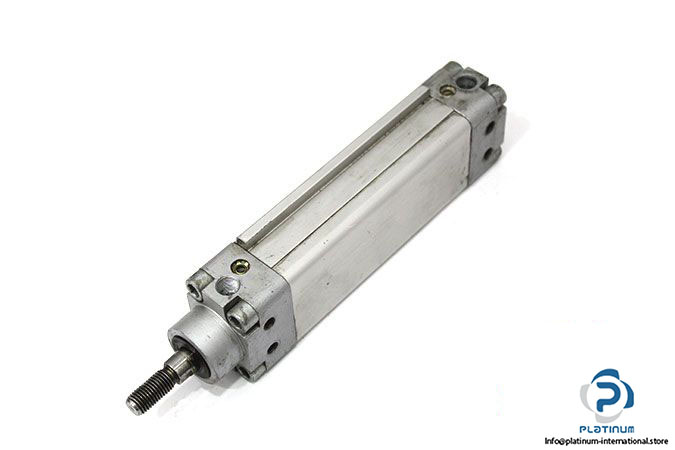

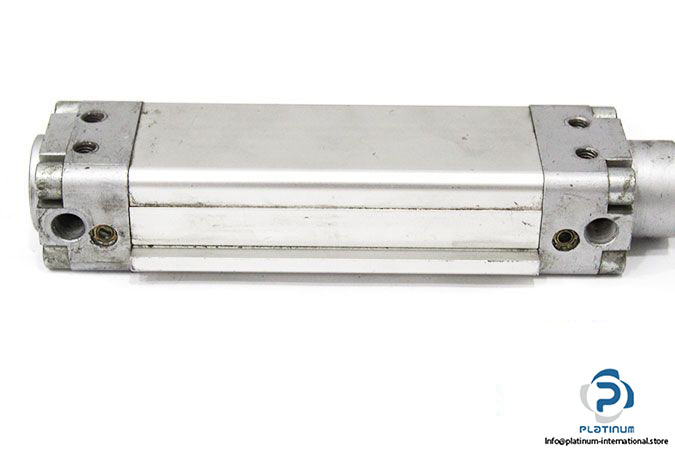

Festo 014044 Pneumatic Flat Cylinder

Manufacturer: FESTO

Type: Pneumatic Flat Cylinder

Model: DZH-32-80PPV-A

Part No.: 0 14044

Symbol: 00991235

Acting Type: Double-acting

Design: Flat

Position sensing: For proximity sensor

Working Pressure: 0.6 bar … 10 bar

Piston Size: 32 mm

Stroke: 80 mm

Theoretical force @ 6 bar: 415 N retracting, 483 N advancing

Cushioning: Pneumatic cushioning, adjustable at both ends, 19 mm

Type of Mounting: Optionally: With internal thread, With accessories

Pneumatic Connections: G 1/8

Cover / Housing materials: Aluminum

Ambient Temperature: -20 °C … 80 °C

Weight: 0.71 kg
