Festo 10166 Double Solenoid Valve With Coil
Used
In stock1 unitReady to ship
DOUBLE SOLENOID VALVE
FESTO JMFH-5-1/2 double solenoid valve with poppet seat design, high 4500 l/min flow rate, and electrical actuation. Includes MSFG-24/42-50/60 coil for control reliability.45275/2AirBistablecoildie-castDoubleFestoflowg1/2HighJMFH-5-1/2MSFG-24/42-50/60PneumaticsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

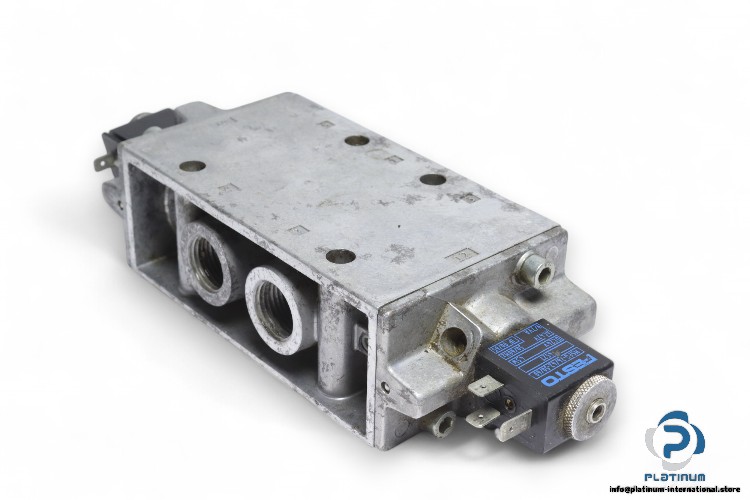

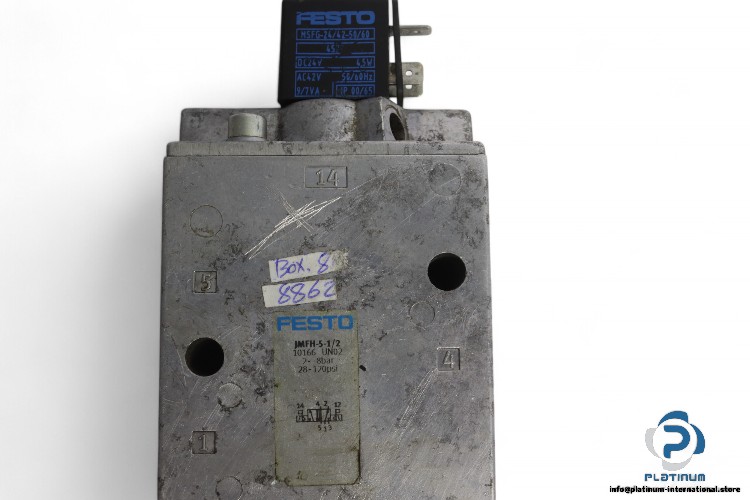

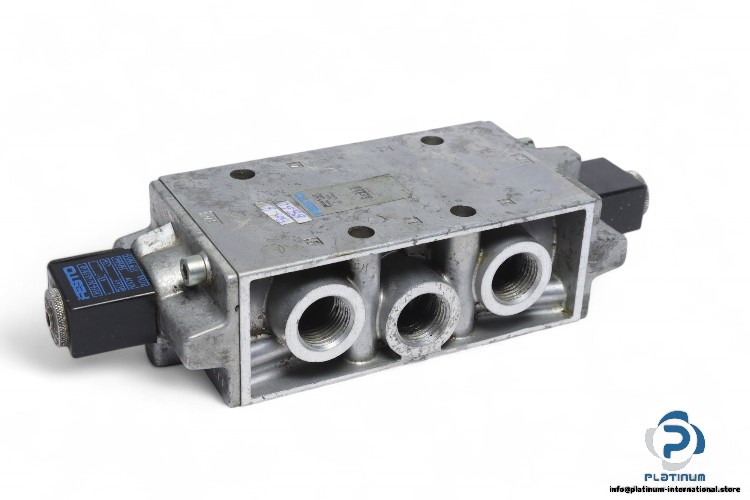

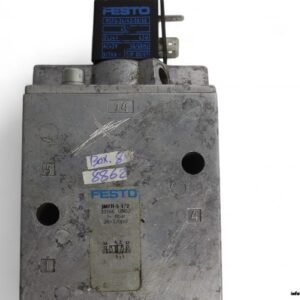

FESTO JMFH-5-1/2 DOUBLE SOLENOID VALVE WITH SOLENOID COIL MSFG-24/42-50/60
The FESTO JMFH-5-1/2 is a durable and efficient 5/2 bistable double solenoid valve designed for high-performance pneumatic systems. Built with a robust die-cast aluminum body and poppet seat design, it supports high nominal flow and reliable operation under demanding industrial conditions. Includes FESTO MSFG-24/42-50/60 solenoid coil for optimized control.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: JMFH-5-1/2
Part No.: 10166

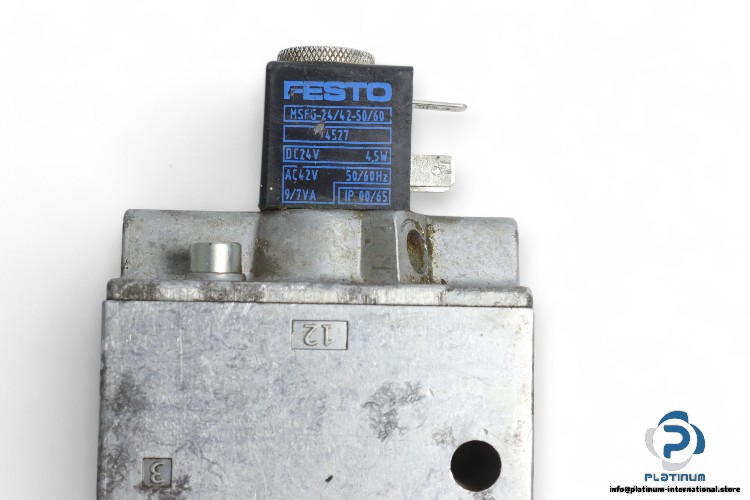

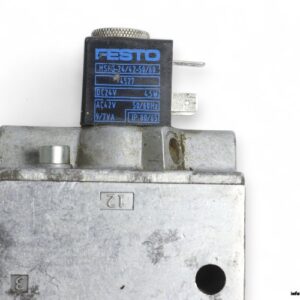

Coil Technical Information
| Fluid | Air |
| Design | Poppet seat |
| Function | 5/2 bistable |
| Type of Actuation | Electrically |
| Operating Pressure | 2 ... 8 bar |
| Nominal Flow Rate | 4500 l/min |
| Pneumatic Connection | G1/2 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 ... 40 °C |
| Solenoid Coil Attachment | FESTO 4527 |
| Part No. | 4527 |
| Supply Voltage | 24 V DC / 42 V AC |
| Frequency | 50 / 60 Hz |
| Power Consumption | 4.5 W / 9/7 VA |
| Protection Class | IP00 / IP65 |
