Festo 10349 Single Solenoid Valve With Coil
Used
In stock1 unitReady to ship
SINGLE SOLENOID VALVE
FESTO MFH-5-1/4-S single solenoid valve with MSFG-24 24V coil for 5/2-way pneumatic systems, delivering 1000 l/min flow with durable aluminum body.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

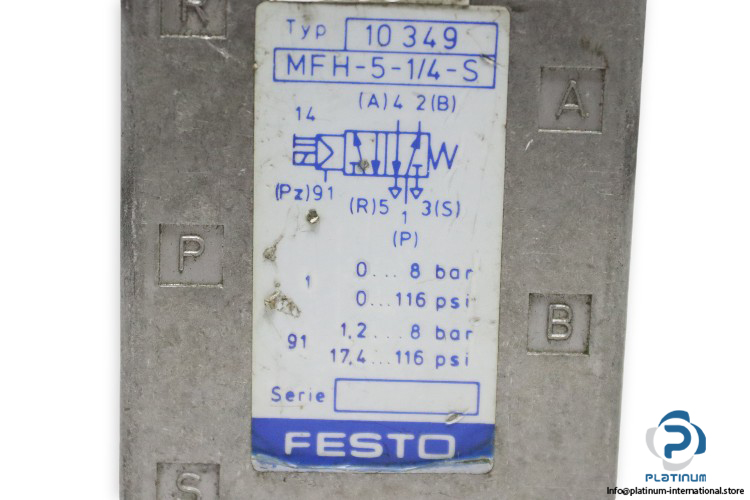

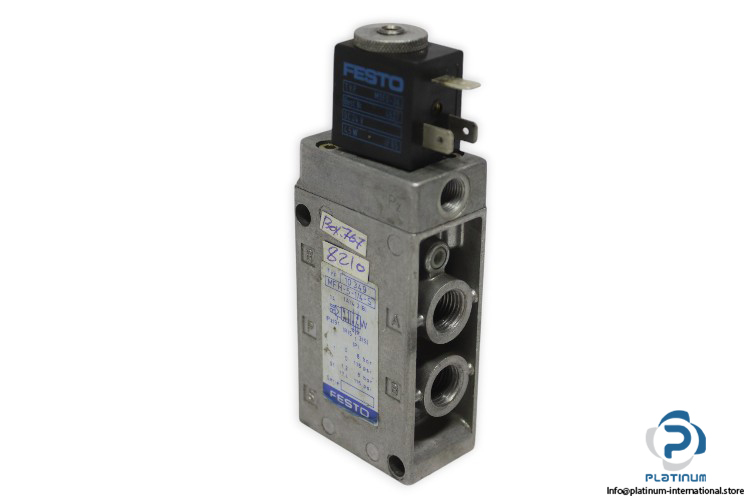

FESTO MFH-5-1/4-S SINGLE SOLENOID VALVE WITH MSFG-24 COIL
The FESTO MFH-5-1/4-S is a high-performance single solenoid valve featuring monostable 5/2-way operation and poppet seat design for reliable control of pneumatic systems. Engineered with a robust aluminum die-cast body and attached MSFG-24 solenoid coil, it ensures fast actuation and efficient air flow regulation.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MFH-5-1/4-S
Part No.: 10349
Coil Technical Information
| Fluid | Air |
| Design | Poppet seat |
| Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 0 / 8 bar |
| Pilot Pressure | 1.5 ... 8 bar |
| Nominal Flow Rate | 1000 l/min |
| Pneumatic Connection | G1/4 |
| Material | Aluminum die cast |
| Ambient Temperature | -5 ... 40 °C |

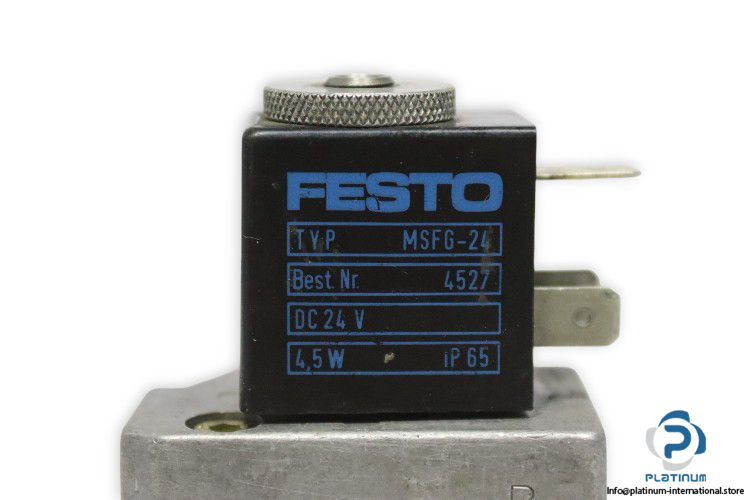

| Solenoid Coil Attachment | FESTO MSFG-24 |
| Part No. | 4527 |
| Supply Voltage | 24 V DC |
| Power Consumption | 4.5 W |
| Protection Class | IP65 |
