Festo 110417 Double Solenoid Valve
New
In stock1 unitReady to ship
DOUBLE SOLENOID PNEUMATIC VALVE
FESTO JMVH-5-1/4-B-VI valve with MVH-3-1,2 coil for pilot-controlled 5/2-way compressed air control, G1/4 ports, and rugged die-cast housing.25/2AircoilCompressedControlDirectionalDoubleFestoIndustrialJMVH-5-1/4-B-VIMVH-3-1Pilot-ControlledPneumaticsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

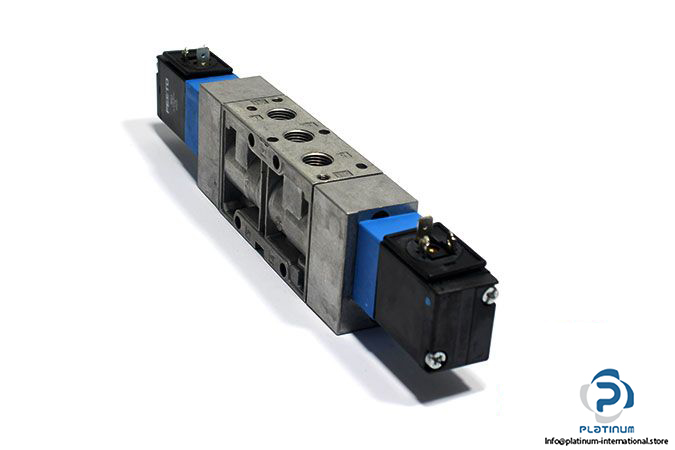

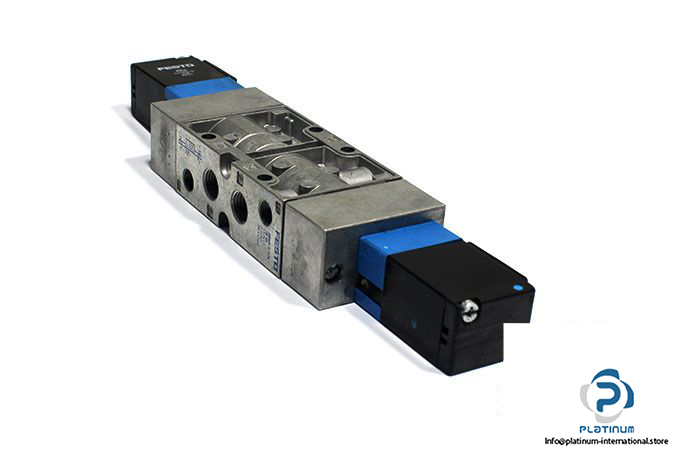

FESTO JMVH-5-1/4-B-VI DOUBLE SOLENOID PNEUMATIC VALVE WITH COIL
The FESTO JMVH-5-1/4-B-VI is a robust and efficient double solenoid pneumatic valve designed for directional control of compressed air systems. Featuring pilot-controlled operation and a 5/2-way valve function, it ensures reliable and precise switching. This valve is paired with the FESTO MVH-3-1,2 solenoid coil for optimal electrical actuation.
Manufacturer: FESTO
Type: Double Solenoid Pneumatic Valve

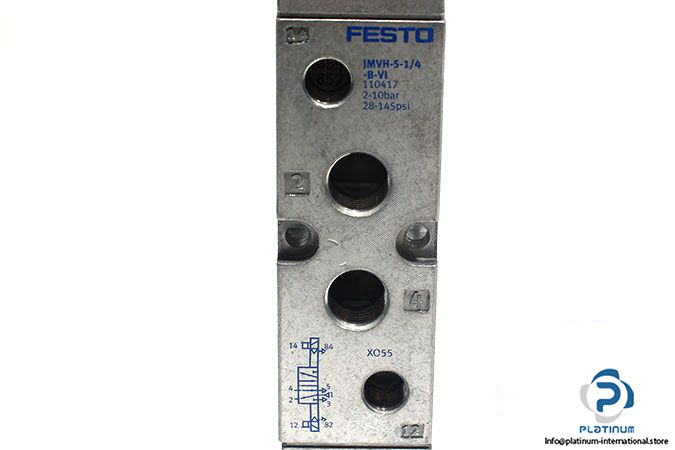

Model: JMVH-5-1/4-B-VI
Part No.: 110417
Pneumatic Connections:
Coil Technical Information
| Fluid | Compressed Air |
| Type of Actuation | Electrically |
| Function | Directional Control Valve, 5/2-Way Valve |
| Operating Pressure | 2 / 10 bar |
| Type of Control | Pilot-Controlled |
| Working Ports 1, 2, 3, 4, 5 | G1/4 |
| Pilot Exhaust Ports 84, 82 | G1/8 |
| Width | 32 mm |
| Housing Material | Die-Cast Aluminum |
| Seals Material | NBR, TPE-U(PU) |
| Fluid Temperature | -5 / 50 °C |
| Solenoid Coil Attachment | FESTO MVH-3-1,2 |
| Part No. | 106102 |
| Supply Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00 / IP65 |
