Festo 11649 Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
Festo EG-25-15 is a single-acting pneumatic cylinder with 25 mm bore and 15 mm stroke. Designed for G1/8 air connections, it supports up to 8 bar and operates without cushioning.1525ActingAirboreconnectionCushioningCylinderEG-25-15FestoG1/8IndustrialmmNOPneumaticRoundShortSingleStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

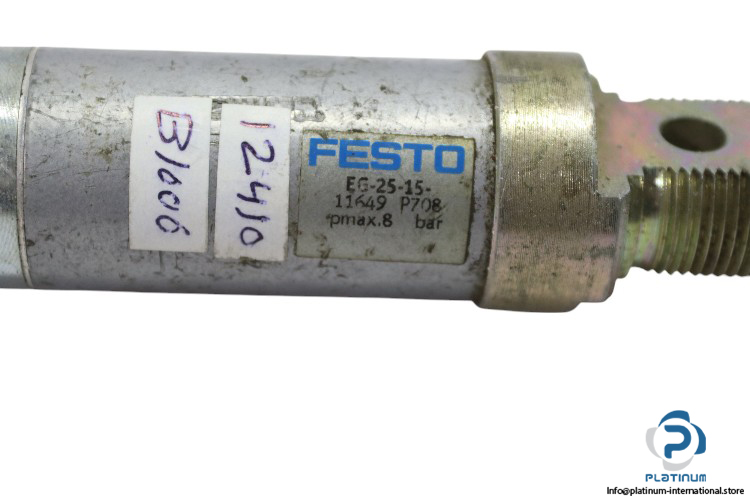

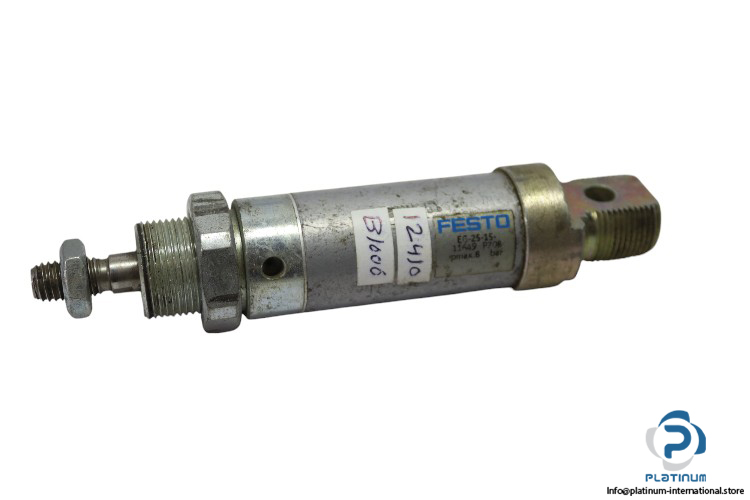

Festo EG-25-15 Round Cylinder “ Part No. 11649
The Festo EG-25-15 is a compact single-acting pneumatic round cylinder designed for applications requiring precise short-stroke motion. With a 25 mm bore and 15 mm stroke, this unit is ideal for light-duty compressed air systems operating at pressures up to 8 bar.
Manufacturer: Festo
Type: Round Cylinder
Model: EG-25-15
Part No.: 11649
| Bore Diameter | 25 mm |
| Stroke | 15 mm |
| Cushioning | No Cushioning |
| Operating Medium | Compressed Air |
| Pneumatic Connection | G1/8 |
| Variants | Single-ended Piston Rod |
| Mode of Operation | Single Acting |
| Shape | Circular |
| Max. Operating Pressure | 8 bar |
| Ambient Temperature | -20 to 80 °C |
