Festo 11655 ISO Cylinder
Used
In stock1 unitReady to ship
Festo ESN-20-20-P ISO Cylinder “ Compact pneumatic cylinder with 20 mm stroke and piston, double acting, G1/8 connection, non-corrosive steel construction, and max pressure of 10 bar.
1165520ActingAirAutomationCylinderDoubleESN-20-20-PFestoG1/8IndustrialISOmmNon-CorrosivePneumaticPneumaticsStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

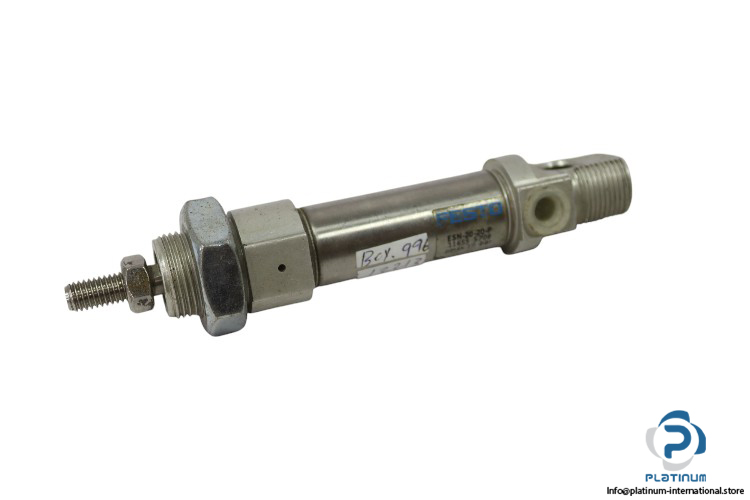

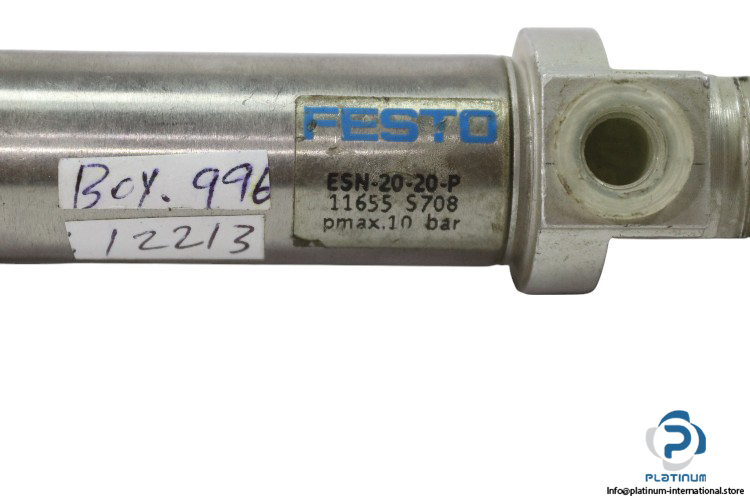

Festo ESN-20-20-P ISO Cylinder
The Festo ESN-20-20-P is a compact and durable ISO cylinder designed for precision motion control in pneumatic automation systems. With its double-acting operation and corrosion-resistant construction, it ensures reliable performance across a wide range of industrial applications.
Manufacturer: Festo
Type: ISO Cylinder
Model: ESN-20-20-P
Part No.: 11655
| Piston Diameter | 20 mm |
| Stroke | 20 mm |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double Acting |
| Operating Medium | Compressed Air |
| Maximum Operating Pressure | 10 bar |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Piston Rod Thread | Male |
| Rod Direction | One Side |
| Material for Cover | Wrought Aluminum Alloy |
| Material for Seals | NBR |
| Material for Piston Rod | High Alloy Steel, Non-Corrosive |
| Material for Cylinder Barrel | High Alloy Steel, Non-Corrosive |
