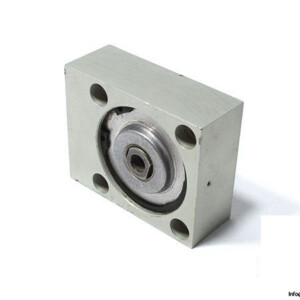

Festo 11891 Short Stroke Cylinder
Short Stroke Cylinder

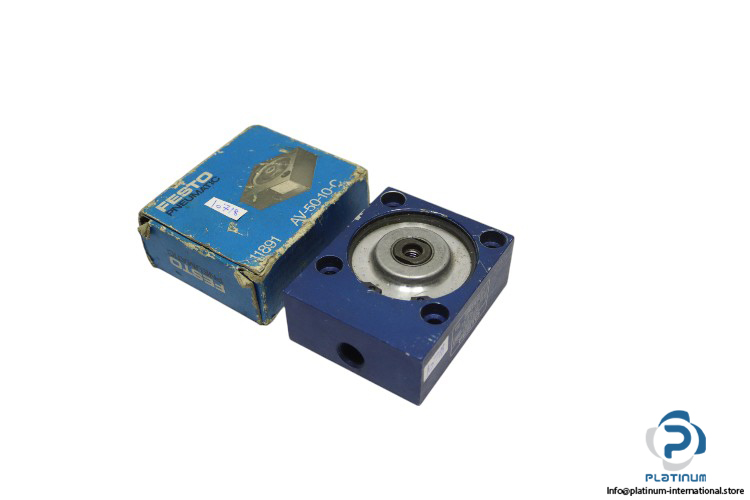

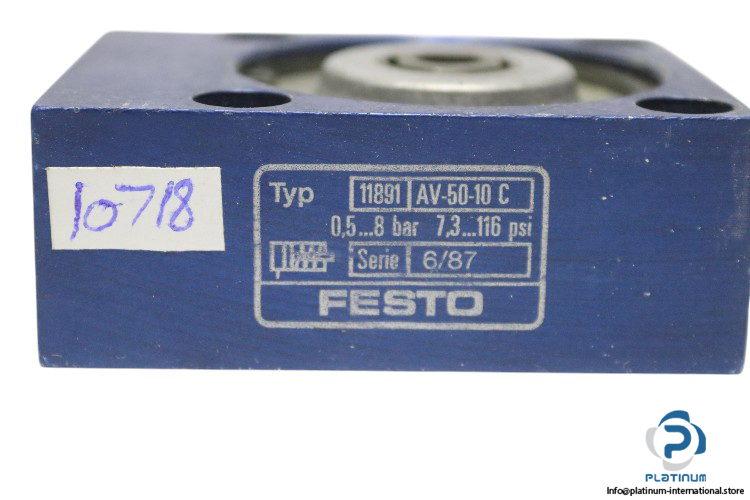

FESTO Short Stroke Cylinder AV-50-10-C with 50 mm piston size, 10 mm stroke length, and 0.5 to 10 bar operating pressure. Built from durable aluminium with G 1/4 port size, ideal for precise pneumatic applications.FESTO Short Stroke Cylinder AV-50-10-C
The FESTO Short Stroke Cylinder AV-50-10-C is a compact and reliable pneumatic actuator designed for applications requiring precise and efficient movement. With a piston size of 50 mm and a stroke length of 10 mm, this cylinder operates within an operating pressure range of 0.5 to 10 bar. Featuring a piston rod diameter of 16 mm and constructed from durable aluminium, the cylinder ensures long-lasting performance in harsh environments. It operates on filtered compressed air and includes a G 1/4 port size, providing compatibility with various pneumatic systems. The cylinder can function in temperatures ranging from -20°C to 80°C, making it suitable for a wide range of industrial applications.
Manufacturer: FESTO
Type: Short Stroke Cylinder
Model: AV-50-10-C
Part No.: 11891
Technical Specifications
- Fluid: Filtered Compressed Air
- Piston Size: 50 mm
- Piston Rod Diameter: 16 mm
- Stroke Length: 10 mm
- Operating Pressure: 0.5 / 10 bar
- Operation Mode: Single, Pushing
- Material: Aluminium
- Port Size: G 1/4
- Temperature: -20 / 80 °C
