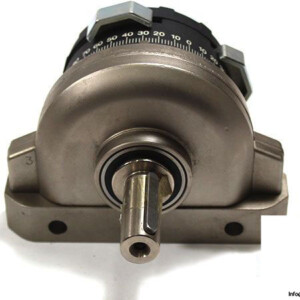

Festo 11912 Quarter Turn Actuator Without Cover
Used
In stock2 unitsReady to ship
Quarter Turn Actuator
The Festo DSR-32-180-P is a rotary vane actuator with 0 to 180 degree swivel angle, 10 newton meter torque at 6 bar, and double acting design for precise pneumatic motion control.10180ActingActuatorAutomationComponentconnectionDegreeDoubleDSR-32-180-PFestoG1/8IndustrialNmPneumaticQuarterRotaryTurnVane
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

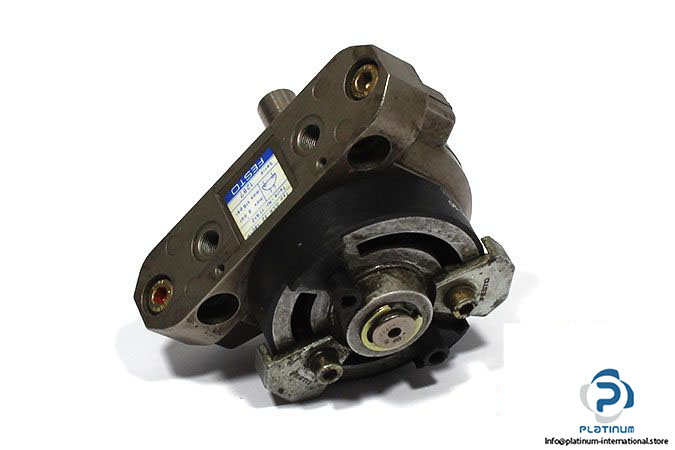

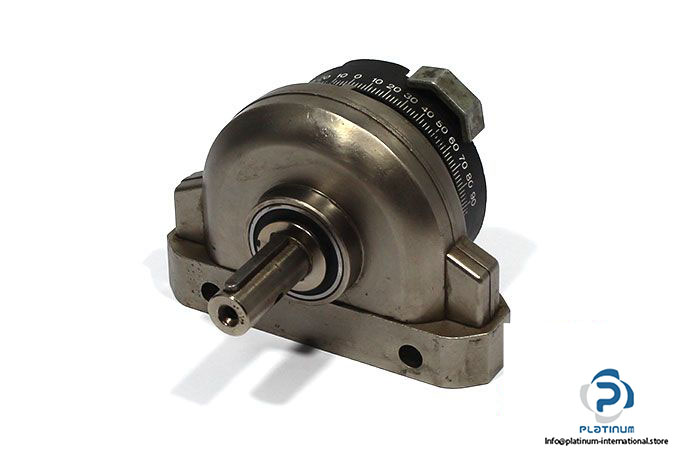

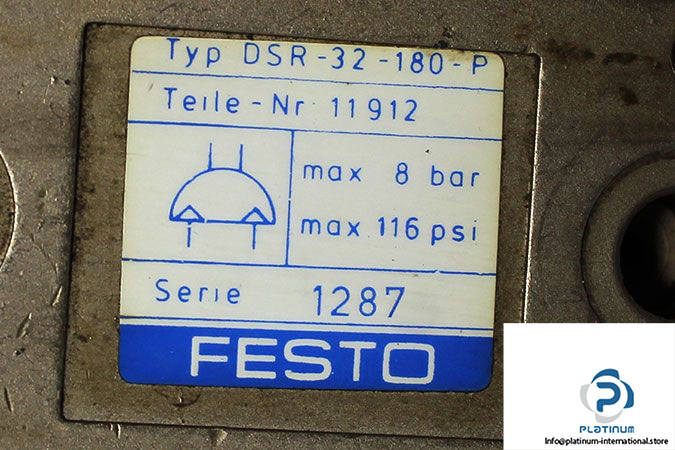

Festo DSR-32-180-P Quarter Turn Actuator
The Festo DSR-32-180-P Quarter Turn Actuator is a durable and high-performance rotary vane actuator designed for precise angular positioning. It offers smooth operation, reliable torque output, and compact construction, making it ideal for industrial automation and control applications.
Manufacturer: Festo
Type: Quarter Turn Actuator
Model: DSR-32-180-P
Part Number: 11912
Series: L702
Size: 32
| Cushioning Angle | 1.2 degree |
| Cushioning | Elastic cushioning rings or plates at both ends |
| Swivel Angle | 0 to 180 degree |
| Maximum Radial Force | 200 newton |
| Operating Pressure | 1.5 to 8 bar |
| Fluid | Air |
| Design | Rotary vane |
| Torque at 6 bar | 10 newton meter |
| Pneumatic Connection | G1 by 8 |
| Ambient Temperature | minus 10 to 60 degree Celsius |
| Mode of Operation | Double acting |
| Material Housing | Die cast zinc |
| Materials | Steel nickel plated |
