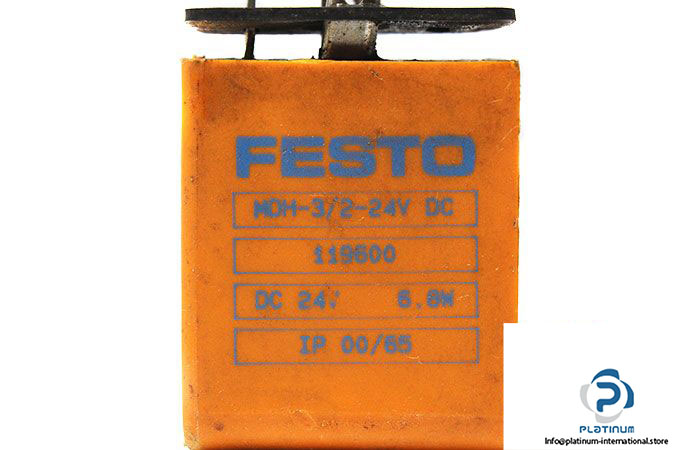

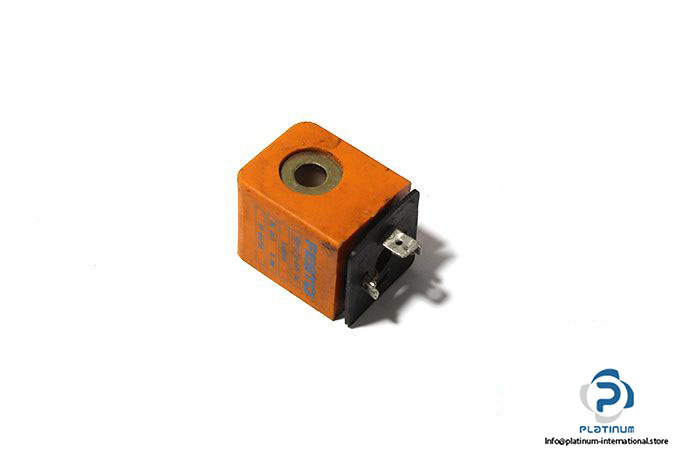

Festo 119600 Solenoid Coil

Manufacturer: FESTO

Type: Solenoid Coil

Model: MDH-3/2-24DC

Part No.: 119600

MRN: 4052568068233

Power supply:

Voltage: 53 V AC

• Frequency: 60 Hz
• Initial power: 15 VA
• Holding power: 3 VA

Voltage: 24 V DC

• Power: 8 W

Voltage: 48 V AC

• Frequency: 50 Hz
• Initial power: 5 VA
• Holding power: 9 VA

Duty cycle: 100 %

Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Electrical connection: 3-pin – as per DIN EN 175301-803 Form A

Plug design: Conical.

Inner diameter: 8 mm – 9 mm

Length: 29.5 mm

Ambient temperature: -10 °C … 50 °C

Protection Class: IP65
