Festo 1366953 ISO Cylinder
ISO Cylinder

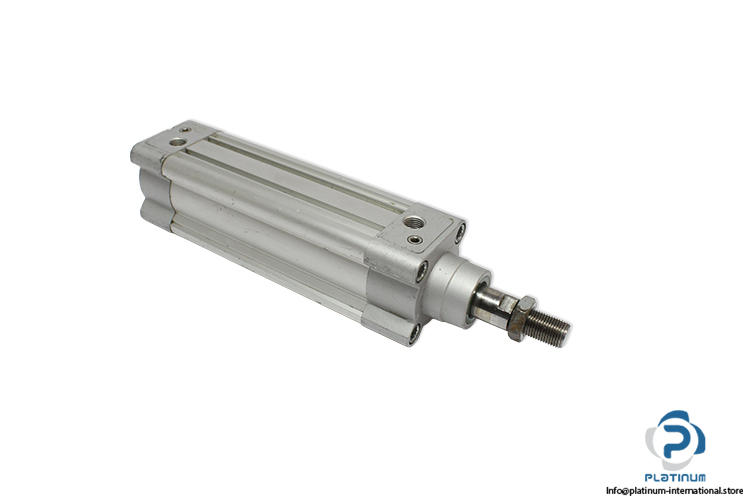

Festo double-acting ISO pneumatic cylinder with 50 mm piston diameter, 125 mm stroke, adjustable cushioning, and sensor-ready design.Festo DSBC-50-125-PPVA-N3 ISO Cylinder
A high-performance ISO standard pneumatic cylinder manufactured by Festo, designed for precise linear motion in industrial automation systems. This double-acting cylinder features adjustable pneumatic cushioning at both ends, robust aluminum construction, and compatibility with proximity sensors for accurate position detection. Manufacturer: Festo
Type: ISO Cylinder

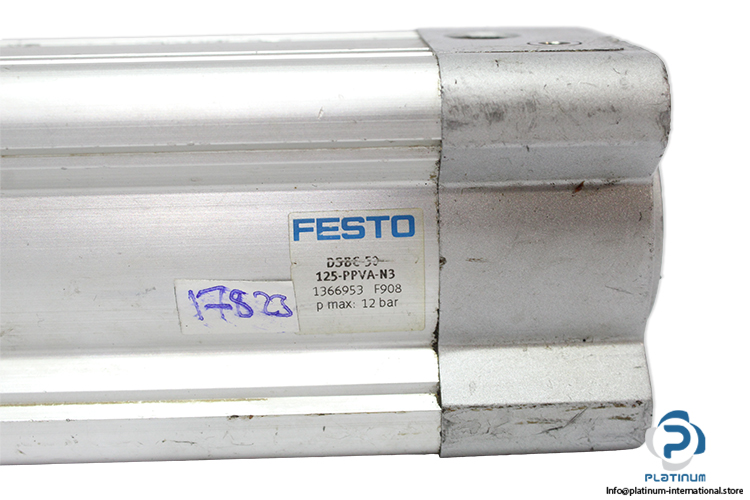

Model: DSBC-50-125-PPVA-N3
Part No.: 1366953
Code: F908
Recommendation:
This Festo ISO cylinder is ideal for automated machinery, production lines, and motion control applications requiring reliable linear actuation. For enhanced system performance and monitoring, it is recommended to combine this cylinder with compatible Proximity Sensors and suitable pneumatic components available at Platinum International to ensure accurate positioning, smooth operation, and long service life.
| Operating Medium | Compressed Air |
| Stroke Length | 125 mm |
| Piston Diameter | 50 mm |
| Mode of Operation | Double Acting |
| Cushioning | Pneumatic Cushioning, Adjustable at Both Ends |
| Piston Rod End | Male Thread |
| Position Detection | Via Proximity Switch |
| Variants | Piston Rod at One End |
| Shape | Square |
| Maximum Operating Pressure | 12 bar |
| Pneumatic Connection | G 1/4 |
| Ambient Temperature | -20 °C to +80 °C |
| Material Cover | Die-Cast Aluminum, Coated |
| Material Cylinder Barrel | Wrought Aluminum Alloy, Smooth Anodized |
| Material Piston Rod | High-Alloy Steel |
| Material Piston Rod Wiper | TPE-U (PU) |
| Buffer Seal Material | TPE-U (PU) |
