Festo 1366955 ISO Cylinder
New
In stock4 unitsReady to ship
ISO Cylinder
FESTO DSBC-50-200-PPVA-N3 ISO Cylinder is designed for high-performance pneumatic applications. With a 50 mm bore and 200 mm stroke, this double-acting actuator ensures precision motion control. Featuring a G 1/4 connection and a maximum pressure of 12 bar, it is ideal for industrial automation.1/4200mm50mmActuatorAirAutomationboreCompressedconnectionControlCylinderdouble-actingDSBC-50-200-PPVA-N3FestoGhigh-performanceIndustrialISOMotionPneumaticPrecisionStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

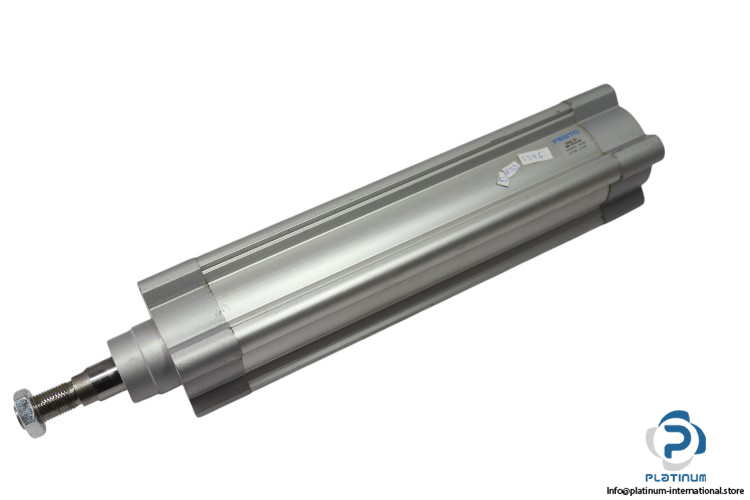

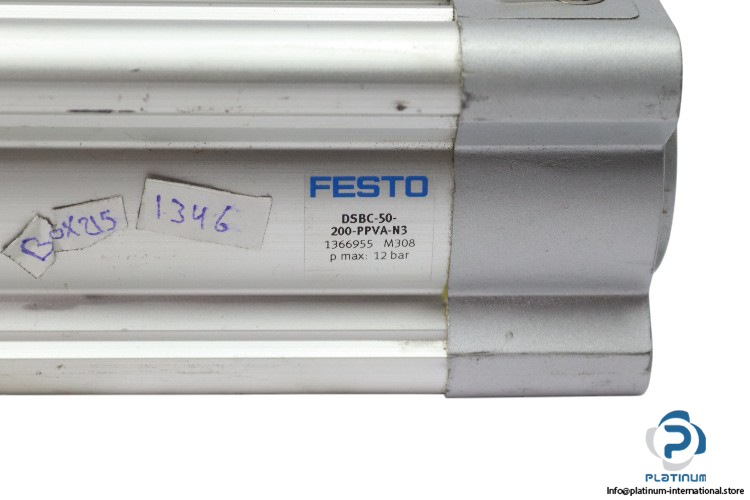

FESTO DSBC-50-200-PPVA-N3 ISO Cylinder
The FESTO DSBC-50-200-PPVA-N3 ISO Cylinder is a high-precision pneumatic actuator designed for industrial automation and motion control applications. Built to ISO standards, this double-acting cylinder delivers reliable performance with superior durability and efficiency.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DSBC-50-200-PPVA-N3
Part No.: 1366955
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 200 mm |
| Bore x Stroke | 50 x 200 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 65 x 340 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
