Festo 1376422 ISO Cylinder
New
In stock1 unitReady to ship
ISO Cylinder
FESTO DSBC-32-25-PPVA-N3 ISO Cylinder is designed for precise pneumatic motion control. With a 32 mm bore, 25 mm stroke, and double-acting operation, it ensures smooth performance and reliability. Featuring a G 1/8 pneumatic connection and a maximum pressure of 12 bar, it is built for industrial automation applications.25mm32mmActuatorAirAutomationboreComponentsCompressedcontroCylinderdouble-actingDSBC-32-25-PPVA-N3Festohigh-performanceIndustrialISOMotionPneumaticStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

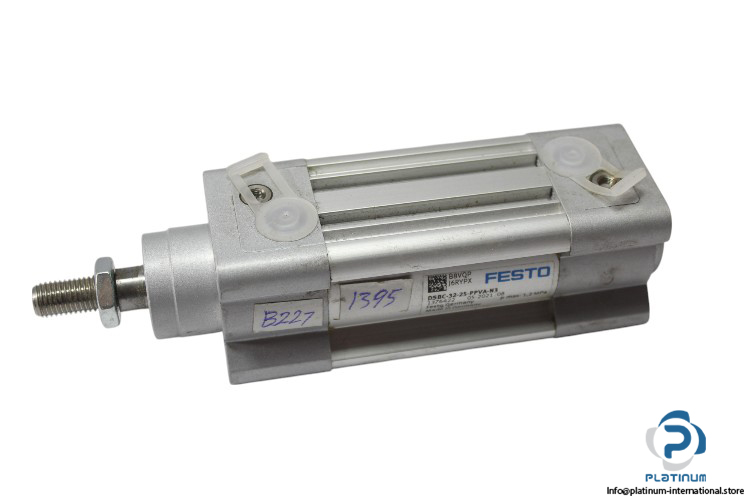

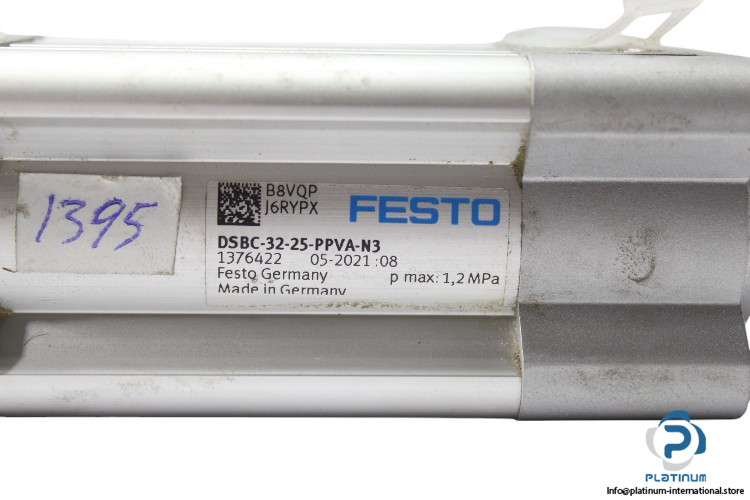

FESTO DSBC-32-25-PPVA-N3 ISO Cylinder
The FESTO DSBC-32-25-PPVA-N3 ISO Cylinder is a high-performance pneumatic actuator designed for precision motion control in industrial applications. Built for durability and efficiency, this double-acting cylinder ensures optimal force transmission and smooth operation under varying pressure conditions.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DSBC-32-25-PPVA-N3
Part No.: 1376422
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke | 25 mm |
| Bore x Stroke | 32 x 25 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 44 x 143 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
