Festo 1376469 ISO Cylinder
New
In stock1 unitReady to ship
77,77$

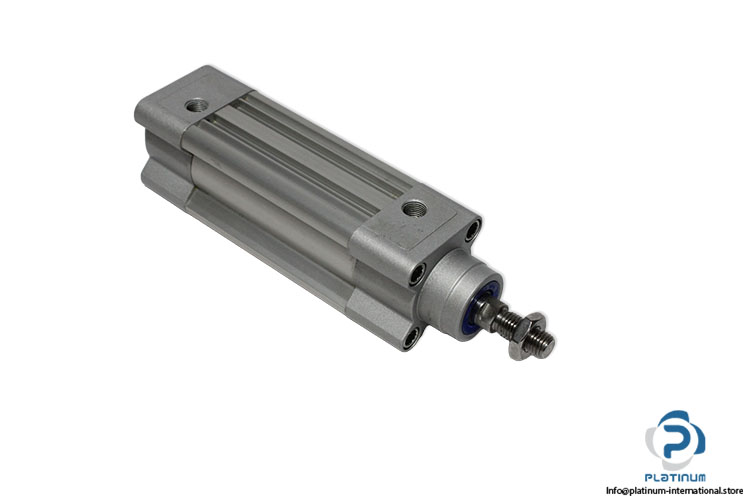

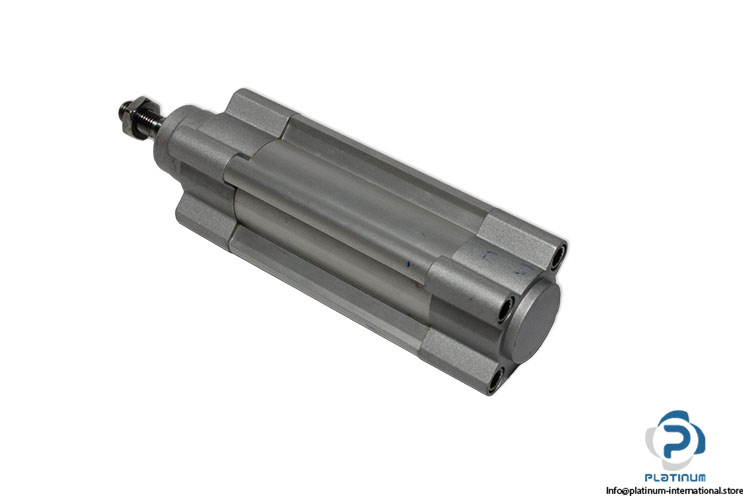

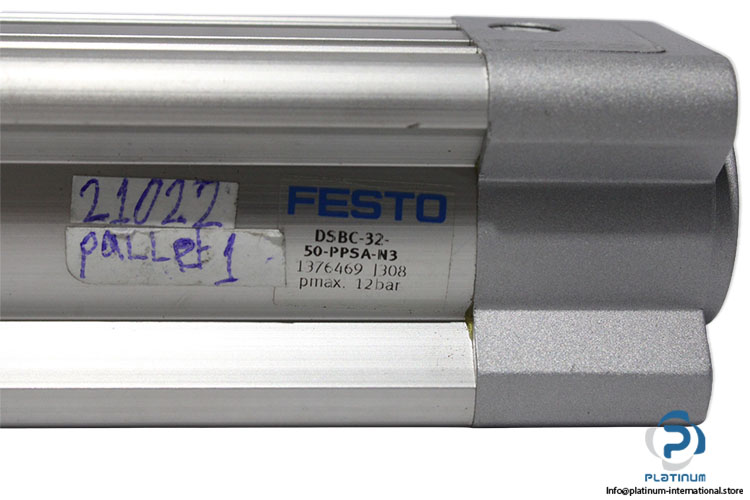

Festo DSBC-32-50-PPSA-N3 ISO Cylinder The Festo DSBC-32-50-PPSA-N3 ISO Cylinder is a precision pneumatic actuator with a 32 mm bore, 50 mm stroke, and double-acting operation. Featuring self-adjusting pneumatic cushioning, durable aluminum construction, and operating pressure up to 12 bar, it is ideal for industrial automation and motion control systems.
ActingActuatorAirautomaAutomationCompressedControlCylinderDoubleFestoIndustrialISOLinearMotionPneumatic
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 1376469 |
| Code | I308 |
| Series | DSBC |
| Fluid | Compressed Air |
| Stroke | 50 mm |
| Bore Size | 32 mm |
| Fram Dimensions | 45X165 mm |
| Rod diameter | 12 mm |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Piston rod thread | M10x1.25 |
| Piston rod end | External Male thread |
| Operating Mode | Double acting |
| Position detection | For proximity sensor |
| Variants | Piston rod at one end |
| Operating pressure | max. 12 Bar |
| Material cover | Die-cast aluminum, coated |
| Material seal | TPE-U(PU) |
| Material rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Connection size | G1/8 |
| Ambient temperature | -20 to 80°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097507 |
| Weight | 0,60 |
