Festo 1376910 ISO Cylinder
New
In stock6 unitsReady to ship
ISO Cylinder
FESTO DSBC-40-200-PPSA-N3 ISO Cylinder is a high-performance pneumatic actuator with a 40 mm bore and 200 mm stroke. Designed for industrial automation, it features a G 1/4 pneumatic connection, 12 bar max pressure, and a double-acting operation. Its durable construction ensures precise and efficient motion control.1/4200mm40mmActuatorAutomationboreconnectionCylinderdouble-actingDSBC-40-200-PPSA-N3FESFestoGhigh-pressureIndustrialISOPneumaticShapeSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

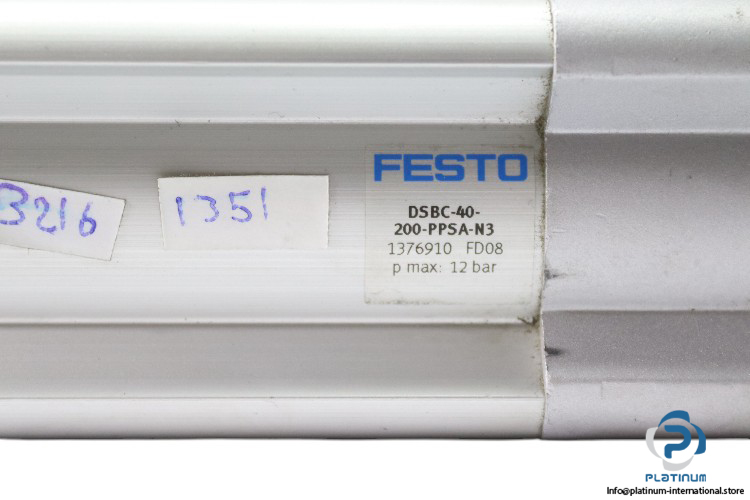

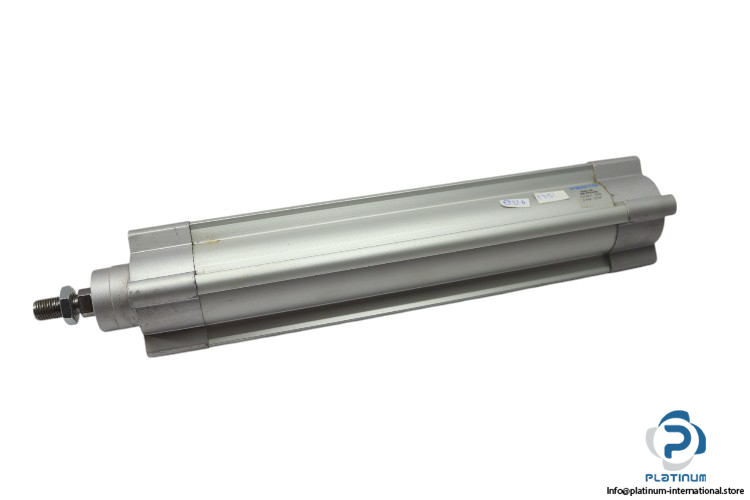

FESTO DSBC-40-200-PPSA-N3 ISO Cylinder
The FESTO DSBC-40-200-PPSA-N3 ISO Cylinder is a high-performance pneumatic actuator designed for precision and durability in industrial automation. With its robust construction and compliance with ISO standards, this cylinder ensures reliable and efficient motion control in demanding applications.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DSBC-40-200-PPSA-N3
Part No.: 1376910
| Media | Compressed Air |
| Bore Diameter | 40 mm |
| Stroke | 200 mm |
| Bore x Stroke | 40 x 200 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 53 x 335 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
