Festo 14015 Vacuum Generator
New
In stock1 unitReady to ship
VACUUM GENERATOR
FESTO VAD-1/8 vacuum generator with 0.8 mm Laval nozzle and G1/8 connection, supports up to 80% vacuum and 10 bar pressure in air systems.AirAluminiumconnectionDevicedie-castFestoG1/8GeneratorIndustrialLavalNozzlePneumaticSystemT-ShapevacuumVAD-1/8
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

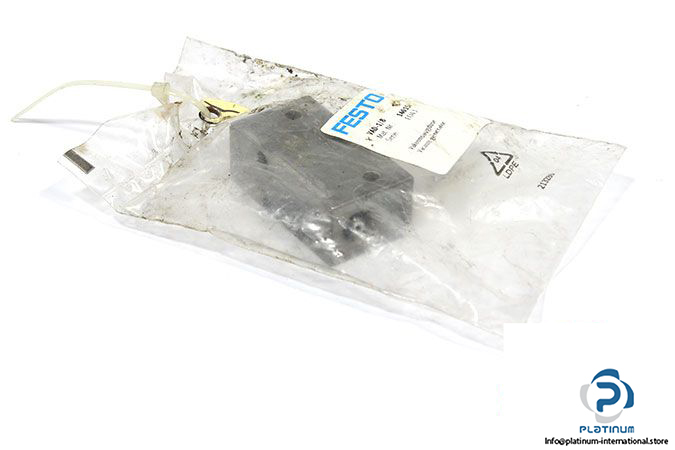

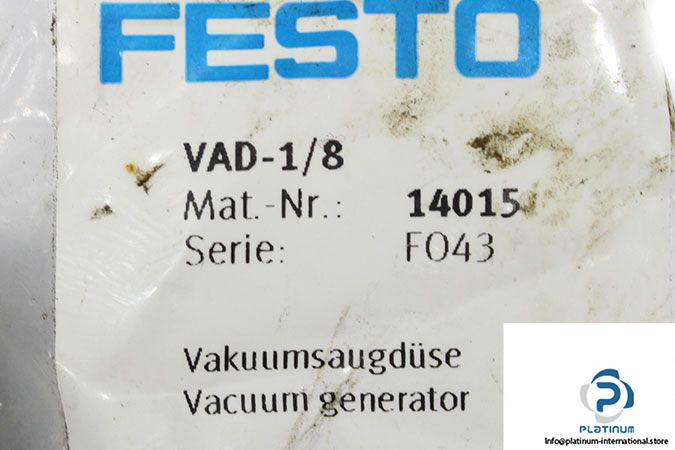

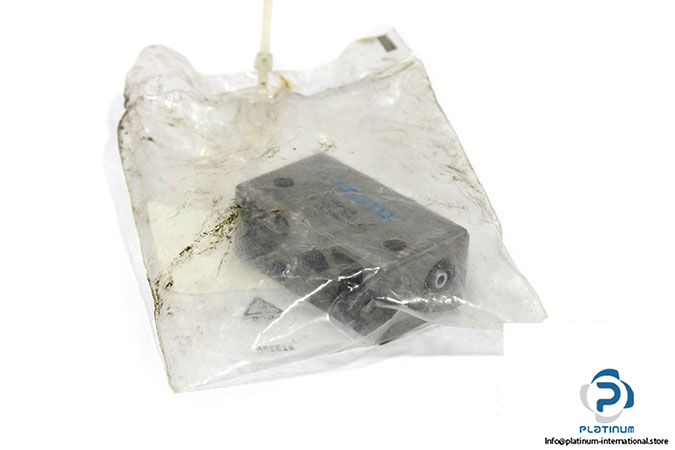

FESTO VAD-1/8 VACUUM GENERATOR
The FESTO VAD-1/8 is a high-performance vacuum generator designed in a compact T-shape body for seamless integration in pneumatic applications. Engineered with a Laval nozzle and durable die-cast aluminium, it delivers strong vacuum performance and reliable operation across a wide pressure and temperature range.
Manufacturer: FESTO
Type: Vacuum Generator
Model: VAD-1/8
Part No.: 14015
| Fluid | Air |
| Design | T-shape |
| Laval Nozzle Nominal Size | 0.8 mm |
| Operating Pressure | 1.5 / 10 bar |
| Vacuum Max. | 80% |
| Pneumatic Connection | G1/8 |
| Material | Die-cast aluminium |
| Ambient Temperature | -20 / 80 °C |
