Festo 14324 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
Compact double-acting pneumatic cylinder from Festo with 20 mm stroke and 12 mm piston diameter. Designed for industrial automation with elastic cushioning and proximity sensor position sensing capability.1220ActingActuatorAutomationCylinderDoubleDsnuDSNU-12-20-P-AFestoIndustrialISOmmPistonPneumaticStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

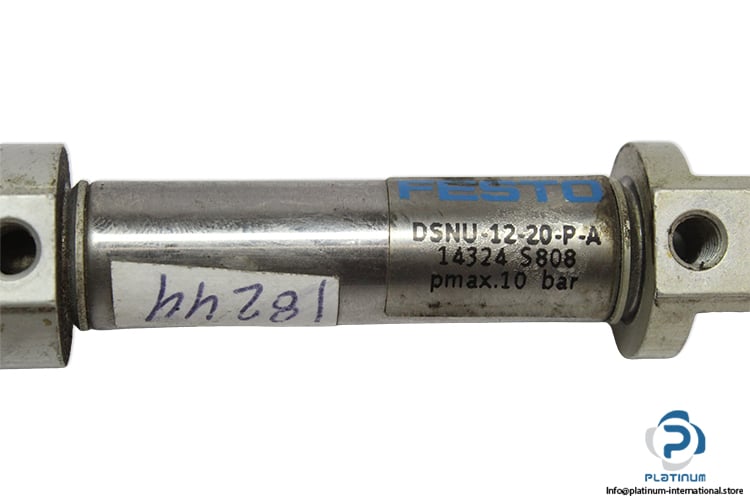

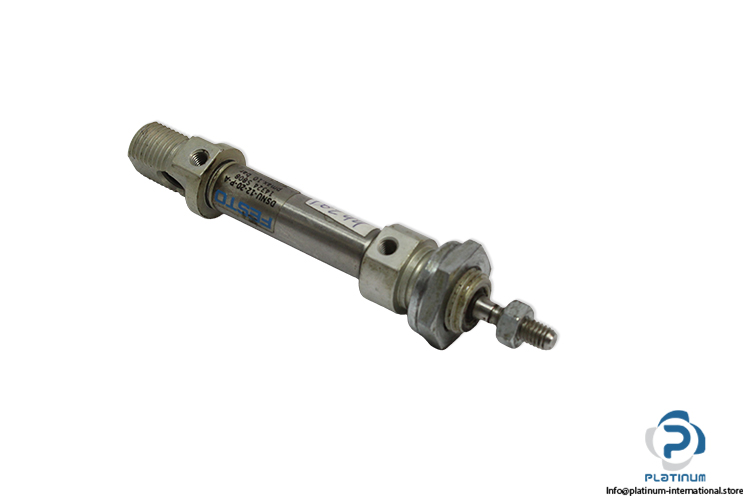

Festo DSNU-12-20-P-A ISO Cylinder
The Festo DSNU-12-20-P-A is a compact ISO pneumatic cylinder designed for reliable linear motion in industrial automation systems. This double-acting cylinder operates using compressed air and features elastic cushioning rings at both ends for smooth and controlled piston movement.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-12-20-P-A
Part No.: 14324
| Stroke | 20 mm |
| Piston Diameter | 12 mm |
| Cushioning | Elastic Cushioning Rings/Plates At Both Ends |
| Position Sensing | Via Proximity Sensor |
| Piston Rod Thread | M6 |
| Piston-Rod End | Male Thread |
| Max Operating Pressure | 10 bar |
| Mode Of Operation | Double-Acting |
| Ambient Temperature | -20 To 80 °C |
| Operating Medium | Compressed Air |
| Connection | 7 mm |
