Festo 150062 Service Unit
Used
In stock2 unitsReady to ship
Service Unit
FESTO FRC-1/4-S-B pneumatic service unit with modular design, pressure regulation up to 12 bar, 40 µm filtration, and direct proportional lubricator for industrial air preparation systems.AirFestofilterIndustrialLubricatorPneumaticPneumaticsPreparationPressureregulatorServiceTreatmentUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

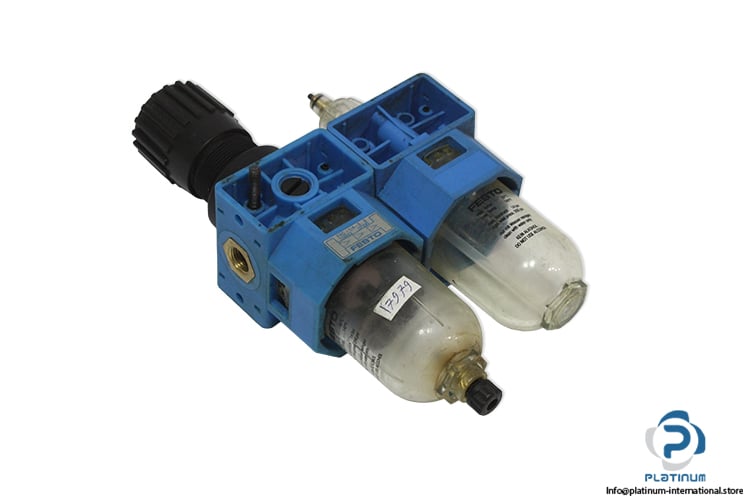

FESTO FRC-1/4-S-B Service Unit
The FESTO FRC-1/4-S-B is a compact pneumatic service unit designed with a modular structure to ensure efficient air preparation in industrial pneumatic systems. It combines reliable pressure regulation, filtration, and lubrication performance in a durable polymer housing, supporting stable operation under varying pressure and environmental conditions.
Manufacturer: FESTO
Type: Service Unit

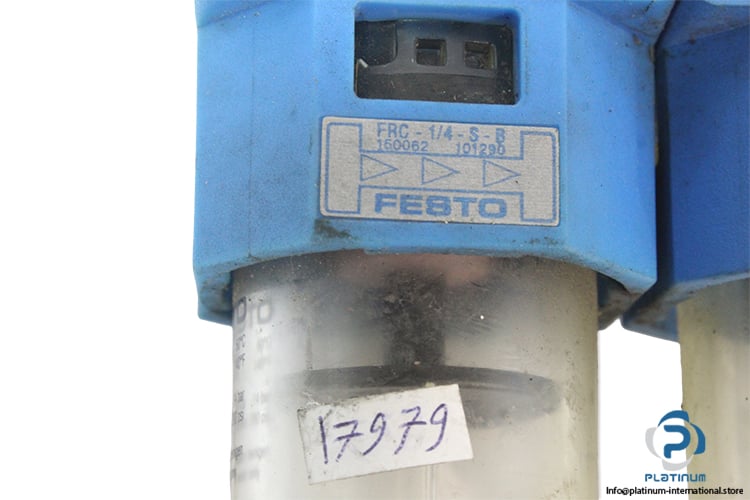

Model: FRC-1/4-S-B
MRN: 150062
| Modular Design | Yes |
| Input Pressure Min. | 0.5 bar |
| Input Pressure Max. | 14 bar |
| Output Pressure Max. | 12 bar |
| Thread For Port 1 | G 1/4 |
| Thread For Port 2 | G 1/4 |
| Type Of Mounting | Hole |
| Minimum Ambient Temperature | -10 °C |
| Maximum Ambient Temperature | 60 °C |
| Minimum Flow For Lubricator Operation | 15.6 l/min |
| Lubricator Design | Direct Proportional |
| Oil Capacity Max. | 75 cm³ |
| Oil Viscosity | 23 |
| Metal Bowl Guard | No |
| Grade Of Filtration | 40 µm |
| Maximum Condensate Capacity | 43 cm³ |
| Condensate Drain System | Manual, Rotary |
| Actuator Locking (Pressure Regulator) | Pull-Up-And-Turn Adjustment |
| Pressure Hysteresis (Pressure Regulator) | 0.5 bar |
| Material Of Housing | PA-Polymer |
| Material Of Bowl | PA-Polymer |
