Festo 150066 Service Unit
Used
In stock1 unitReady to ship
Service Unit
Festo FRC-3/8-S-B service unit for compressed air preparation, combining filtration, pressure regulation, and lubrication for industrial pneumatic systems.3/8AirComponentCompressedFestofilterFRC-3/8-S-BFRLGIndustrialLubricatorPneumaticPreparationregulatorServiceTreatmentUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

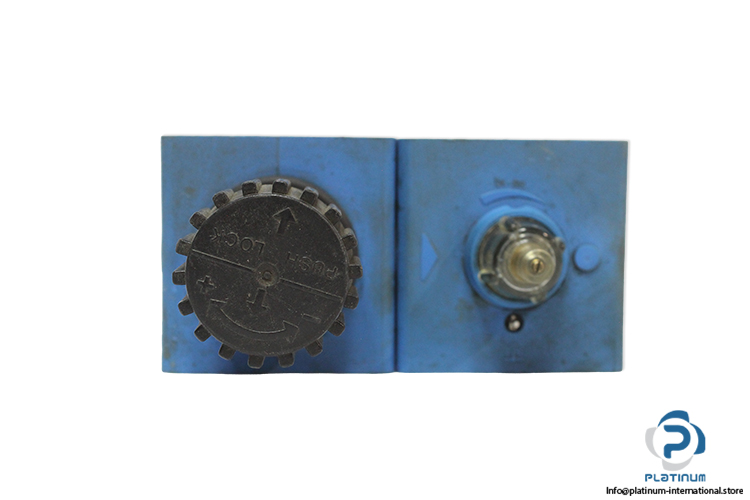

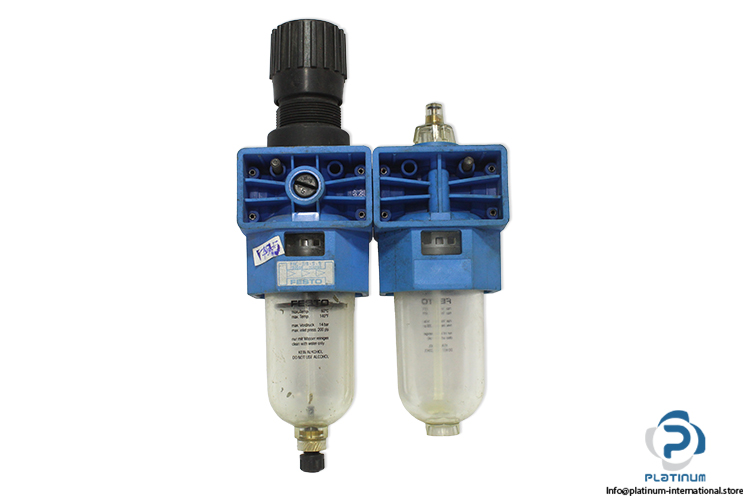

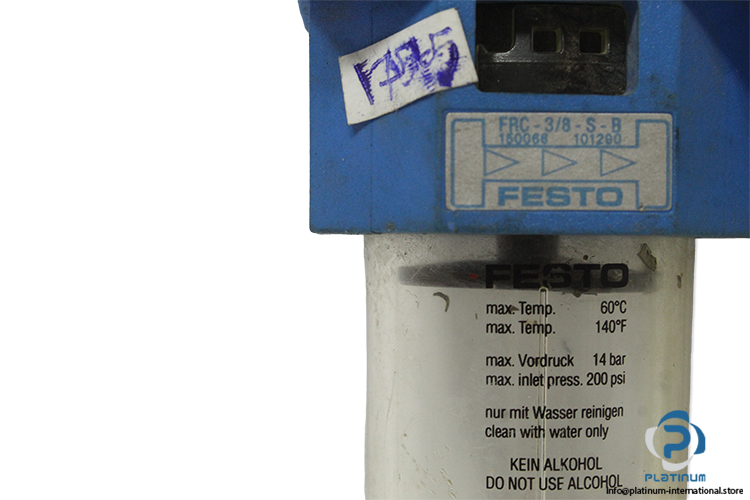

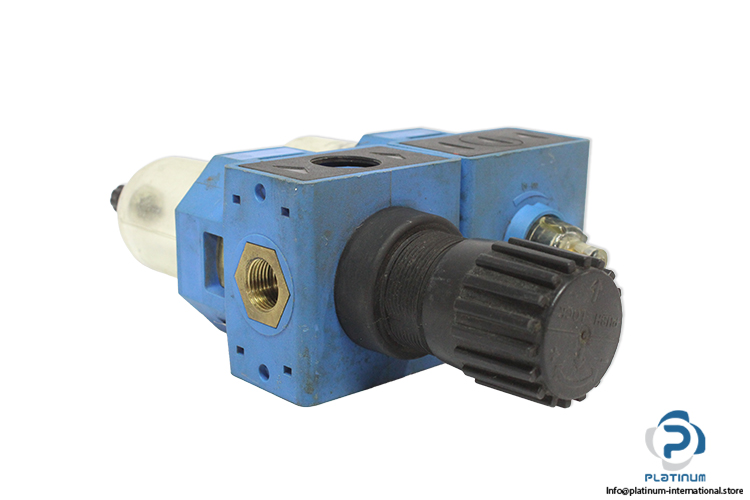

Festo FRC-3/8-S-B Service Unit
A compact and reliable service unit manufactured by Festo, designed to provide air filtration, pressure regulation, and lubrication for industrial pneumatic systems. This unit supports stable compressed air supply, precise pressure control, and consistent lubrication to protect pneumatic components and ensure long service life.
Manufacturer: Festo
Type: Service Unit
Model: FRC-3/8-S-B
Part No.: 150066
Code: 101290
| Operating Medium | Compressed Air |
| Standard Nominal Flow Rate 1“2 | 1660 l/min |
| Minimum Flow for Lubricator Operation | 25 l/min |
| Input Pressure 1 Min. | 0.5 bar |
| Input Pressure 1 Max. | 14 bar |
| Output Pressure 2 Max. | 12 bar |
| Type of Mounting | Hole |
| Oil Capacity Max. | 90 cm³ |
| Grade of Filtration | 40 µm |
| Maximum Condensate Capacity | 50 cm³ |
| Condensate Drain System | Manual, Rotary |
| Actuator Locking (Pressure Regulator) | Pull-Up-And-Turn Adjustment |
| Pressure Hysteresis (Pressure Regulation) | 0.3 bar |
| Oil Viscosity | 23 |
| Ambient Temperature | -10 to 60 °C |
| Medium Temperature | -10 to 60 °C |
| Design Lubricator | Direct Proportional |
| Material of Housing | PA-Polymer |
| Material of Bowl | PA-Polymer |
| Connection | G 3/8 |
