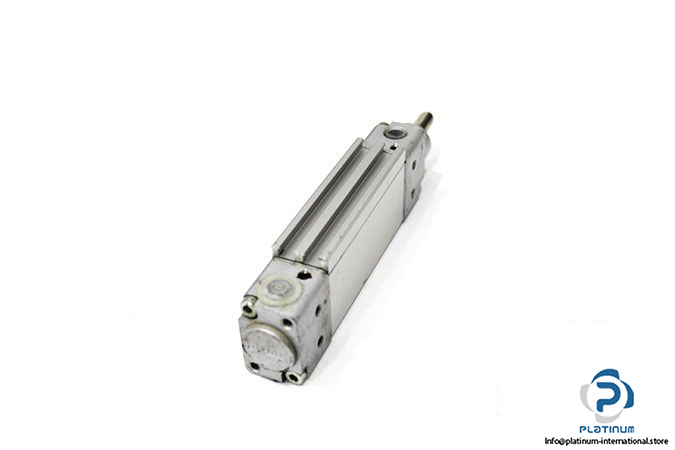

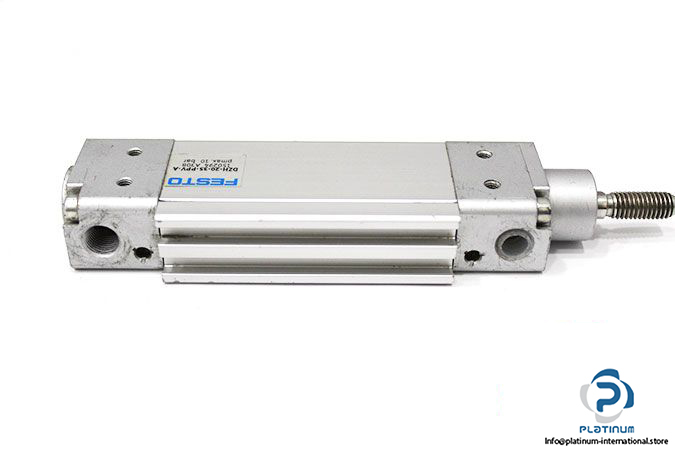

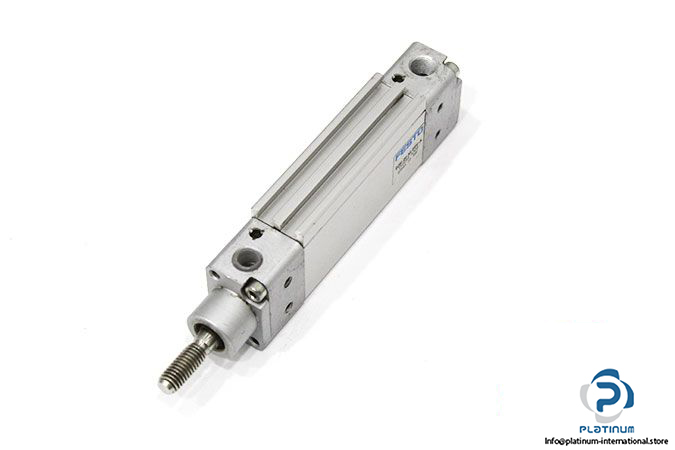

Festo 150294 Pneumatic Flat Cylinder

Manufacturer: FESTO

Type: Pneumatic Flat Cylinder

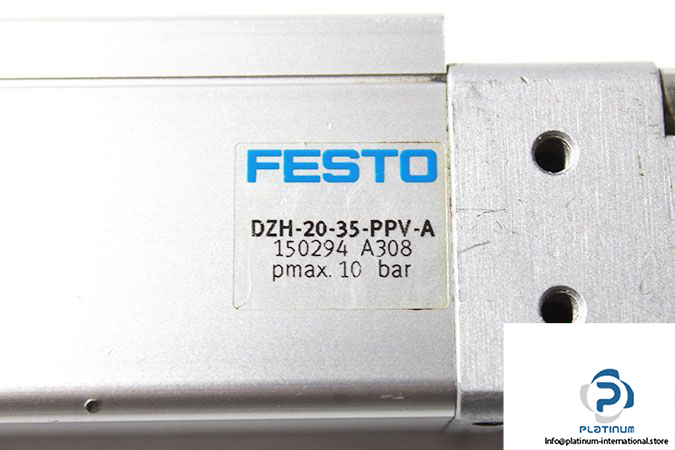

Model: DZH-20-35-PPV-A

Part No.: 150294

Acting Type: Double-acting

Design: Flat

Positioning sensing: for proximity sensor

Theoretical force @ 6bar: 158 N retracting, 188 N advancing

Working Pressure: 1bar…10bar

Piston diameter: 20 mm

Stroke: 35 mm

Cushioning: Pneumatic cushioning, adjustable at both ends, 17 mm

Type of Mounting: Optionally: With accessories, With internal thread

Pneumatic Connections: G 1/8

Cover / Housing material: Aluminum

Ambient Temperature: -20 °C … 80 °C

Weight: 0.275 kg
