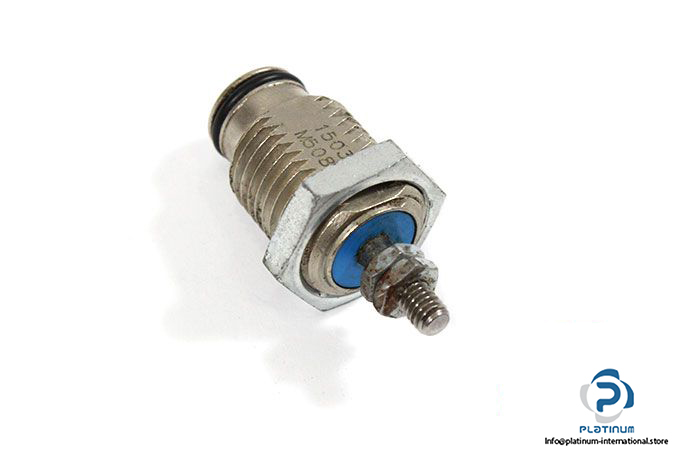

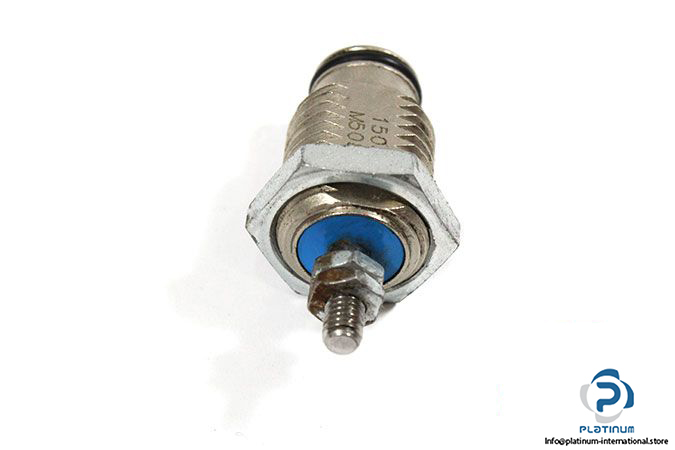

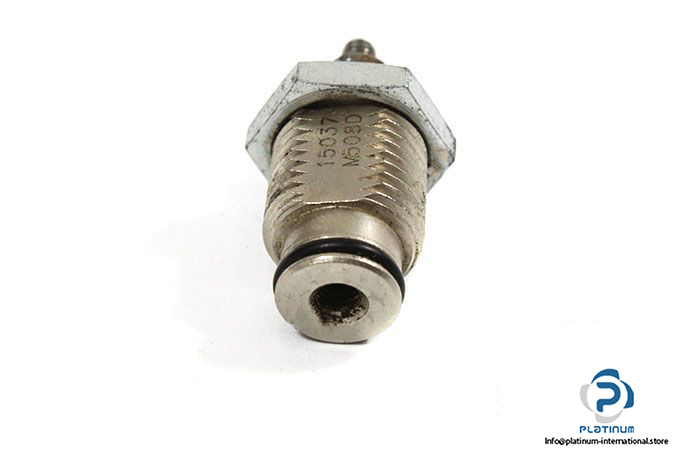

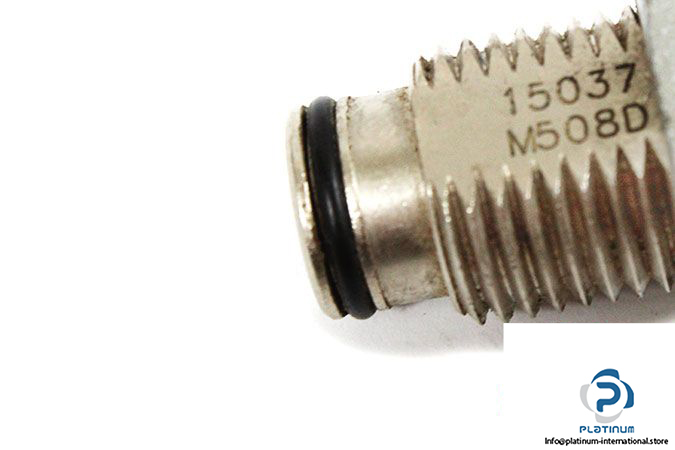

Festo 15037 Cartridge Cylinder

Manufacturer: FESTO

Type: CARTRIDGE CYLINDER

Model: EGZ-10-10

Part No.: 15037

Mode of operation: Single-acting Pushing

Type of mounting: With external thread With lock nut

material:

  Cover material: Polyacetal

  Housing material: Nickel-plated, Brass

  Piston rod material: High-alloy steel

Pneumatic connection: M5

Step for Threaded Surface: M4

Theoretical force at 6 bar: 42 N

Max. applied load at the piston rod: 0.15 N

Spring return force: 3.5 N

Operating pressure: 1.5 bar … 8 bar

Stroke Length: 10 mm

Piston Diameter: 10 mm

Step for Threaded Surface: 1.5

Total Length: 27.5 mm

Variants: Piston rod at one end

Cushioning: No Cushioning

Temperature Range: -20 ….. 80 ^°C

Weight: 0.02 kg
