Festo 150921 50X100 Linear Drive Unit
Used
In stock1 unitReady to ship
LINEAR DRIVE UNIT
Double-acting linear drive unit with 100 mm stroke and ISO cylinder attachment. Engineered for accurate motion and high force output in industrial automation systems.1006ActingActuatorAirAluminumAttachment.AutomationBallbarCompressedCylinderDoubleDriveFestoGuideIndustrialISOLinearmmModelPneumaticRecirculatingSLE-50-100StrokeSystemUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

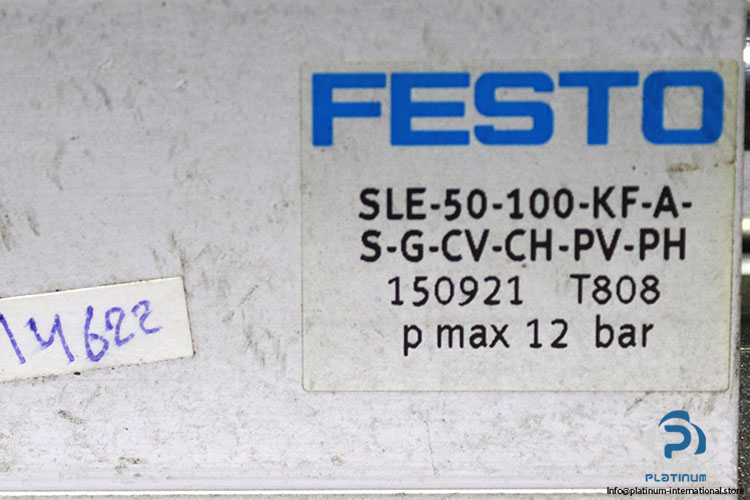

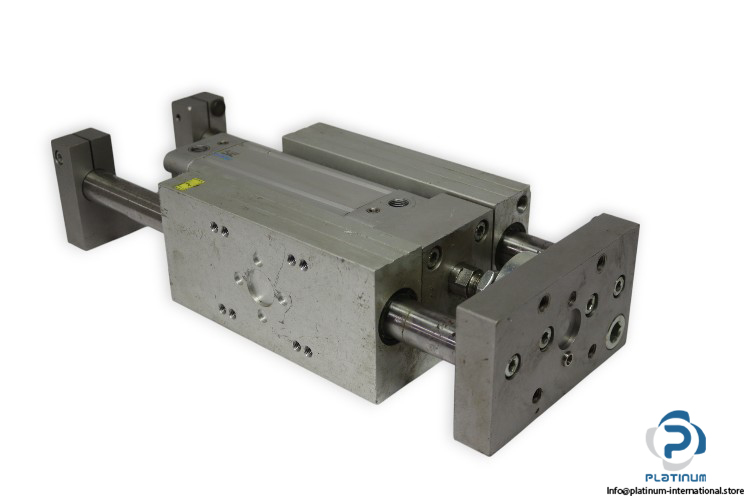

FESTO SLE-50-100-KF-A-S-G-CV-CH-PV-PH LINEAR DRIVE UNIT
High-performance linear drive unit from Festo, designed for demanding industrial automation tasks. Equipped with a recirculating ball bearing guide for smooth linear motion and high load capacity. Suitable for flexible mounting positions and compatible with proximity sensors for advanced positioning control.
Manufacturer: Festo
Type: Linear Drive Unit
Model: SLE-50-100-KF-A-S-G-CV-CH-PV-PH
Part No.: 150921
Ref. Code: T808
Included Attachment
| Stroke Length | 100 mm |
| Piston Diameter | 50 mm |
| Mounting Position | Any |
| Guide | Recirculating Ball Bearing Guide |
| Structural Design | Guide |
| Position Sensing | For Proximity Sensor |
| Operating Pressure | 1.5 to 12 bar |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed Air |
| Theoretical Force at 6 bar (Retracting) | 990 N |
| Theoretical Force at 6 bar (Advancing) | 1178 N |
| Pneumatic Connection | G1/4 |
| Cover Material | Die-Cast Aluminum |
| Material Housing | Die-Cast Aluminum |
| Temperature Range | -20 to 80 °C |

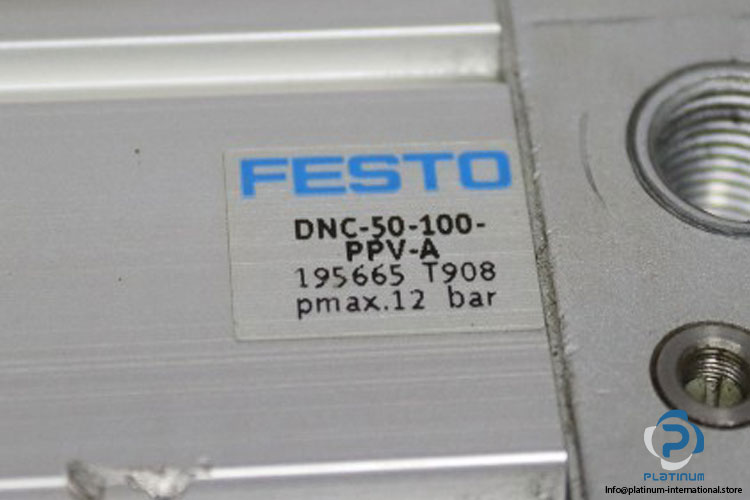

| Part No. | 195665 |
| Ref. Code | T908 |
| Stroke | 100 mm |
| Piston Diameter | 50 mm |
