Festo 150982 Double Solenoid Valve With Coil
Used
In stock1 unitReady to ship
DOUBLE SOLENOID VALVE
FESTO MFH-5/3G-D-1-C double solenoid valve with 5/3 closed function, 24 V DC control, and 1200 l/min flow rate for air systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

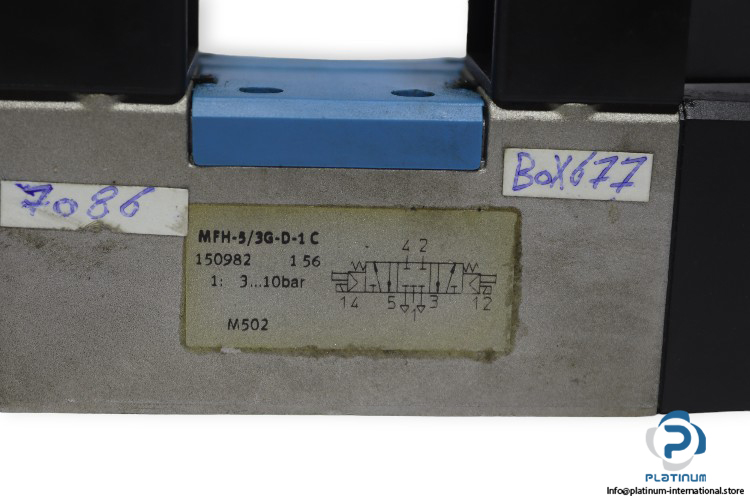

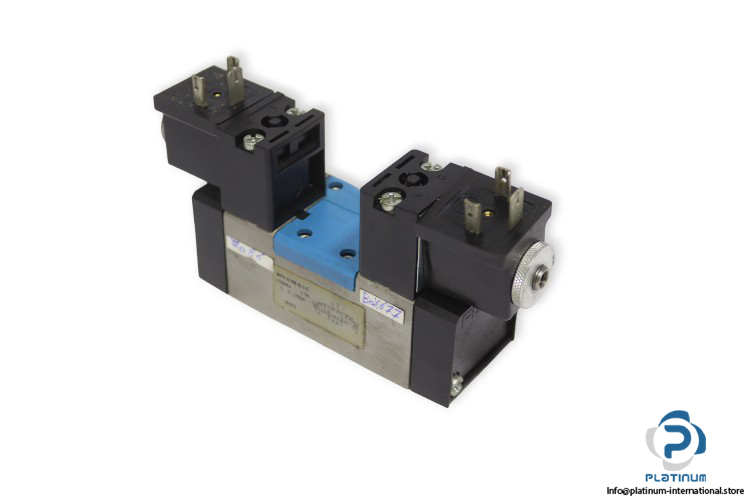

FESTO MFH-5/3G-D-1-C DOUBLE SOLENOID VALVE
The FESTO MFH-5/3G-D-1-C is a high-performance double solenoid valve designed for reliable pneumatic control applications. Built with a durable die-cast aluminum housing and a piston gate design, it offers precise 5/3 closed function for efficient air flow regulation.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MFH-5/3G-D-1-C
Part No.: 150982
| Fluid | Air |
| Design | Piston Gate Valve |
| Function | 5/3 Closed |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 10 bar |
| Standard Nominal Flow Rate | 1200 l/min |
| Nominal Operating Voltage | 24 V DC |
| Housing Material | Die-Cast Aluminum |
| Pneumatic Connection | Sub-Base Size 1 |
| Ambient Temperature | -5 / 40 °C |
