Festo 151023 Double Solenoid Valve
Used
In stock1 unitReady to ship
Double Solenoid Valve
The Festo JMFH-5/2-D-2-S-C double solenoid valve offers efficient control of compressed air systems with 2300 l/min flow rate and precise electrical actuation. It includes the Festo 34411 solenoid coil with 24 V AC/DC operation and IP65 protection.5/2AircoilcomasCompressedDoubleElectricalFestoIP65JMFH-5/2-D-2-S-CMSFG-24/42-50/60-ODPneumaticsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Festo JMFH-5/2-D-2-S-C “ Double Solenoid Valve
The Festo JMFH-5/2-D-2-S-C double solenoid valve is a highly reliable valve for controlling pneumatic systems. Designed with a bistable 5/2 valve function, it is ideal for applications requiring precise control over compressed air. This valve operates with a standard nominal flow rate of 2300 l/min and features a robust structural design.
Manufacturer: Festo
Type: Double Solenoid Valve

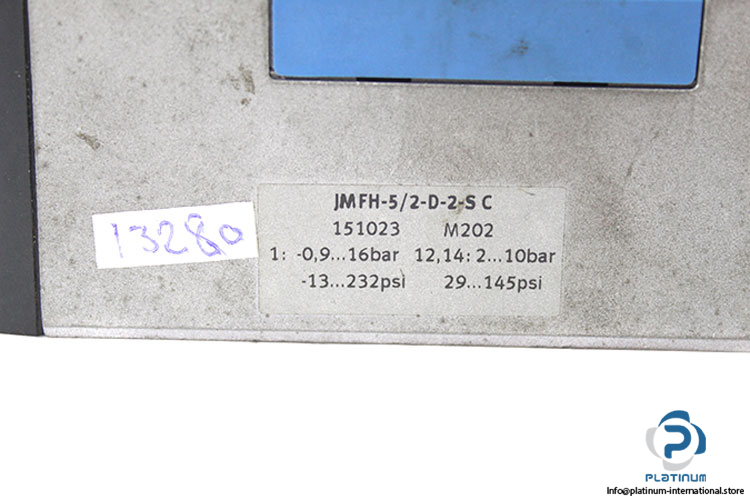

Model: JMFH-5/2-D-2-S-C
Part No.: 151023 M202

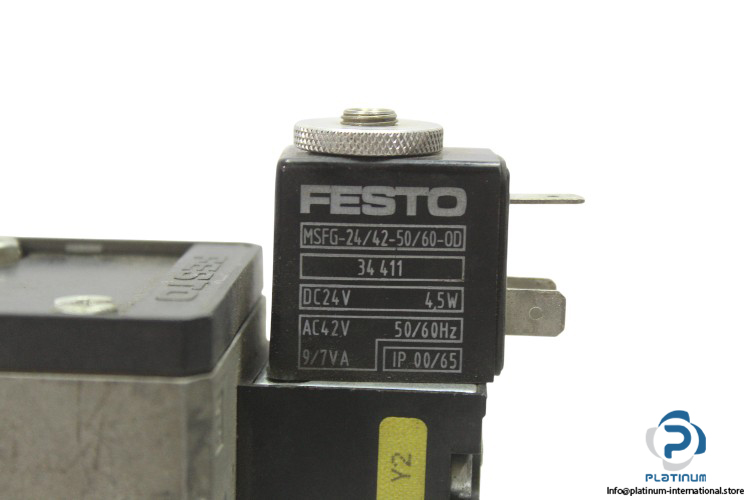

FESTO 34411 SOLENOID COIL
Technical Information:
| Valve Function | 5/2, bistable |
| Actuation Type | Electrical |
| Width | 54 mm |
| Standard Nominal Flow Rate | 2300 l/min |
| Pneumatic Working Port | Sub-base, size 2 according to ISO 5599-1, G3/8 |
| Operating Pressure | -0.9 bar to 16 bar / 2 to 10 bar |
| Structural Design | Piston gate valve |
| Degree of Protection | IP65 |
| Pilot Pressure | 2 bar to 10 bar |
| Changeover Time | 18 ms |
| Operating Medium | Compressed air |
| Electrical Connection | Via F coil, to be ordered separately |
| Ambient Temperature | -5 °C to 40 °C |
| Seals Material | HNBR, NBR |
| Housing Material | Die-cast aluminum |
| Part No. | 34 411 |
| Voltage | 24 V AC/DC |
| Power | 4.5 W |
| Frequency | 50/60 Hz |
| Power | 9/7 VA |
| Protection Degree | IP00/65 |
