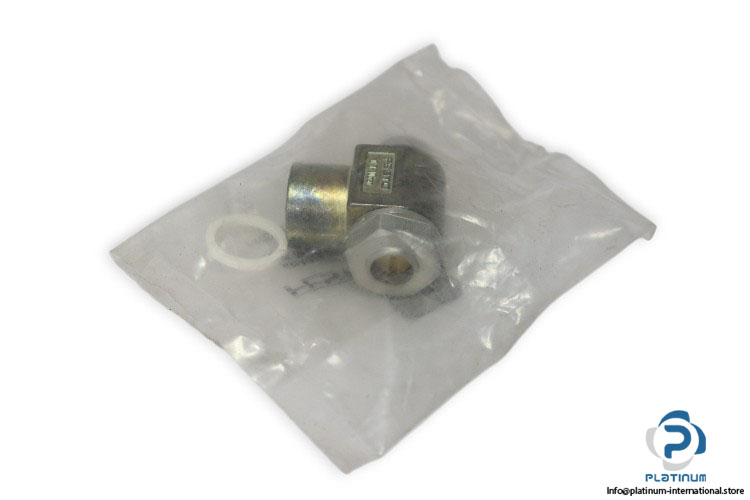

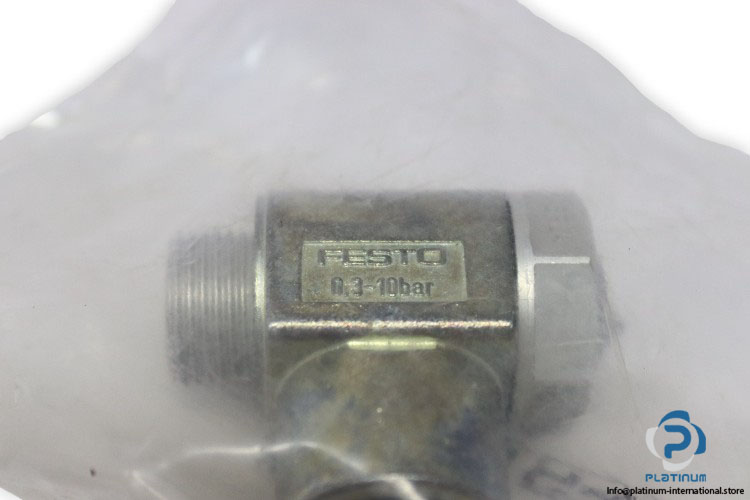

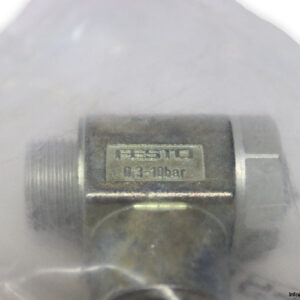

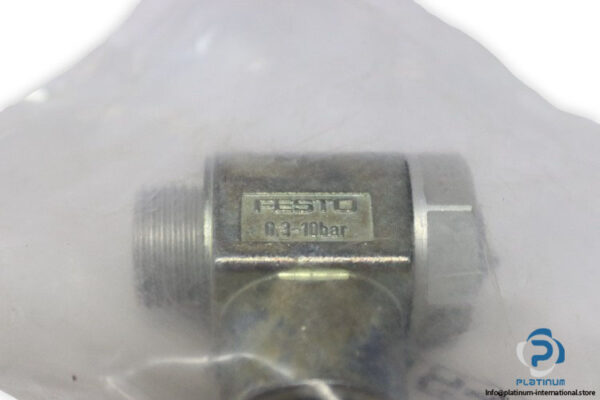

Festo 151178 ONE-WAY Flow Control Valve
New
In stock3 unitsReady to ship
One-Way Flow Control Valve
The FESTO GRLA-3/8-B ensures reliable exhaust air flow control with non-return functionality, 1450 l/min flow capacity, G3/8 connections, and durable NBR seals for industrial pneumatic systems.151178AirAutomationComponentsconnectionControlExhaustFestoflowG3/8GRLA-3/8-BIndustrialNBRNOOne-WaypartPneumaticPneumaticsRegulationSealsValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO GRLA-3/8-B One-Way Flow Control Valve
The FESTO GRLA-3/8-B is a high-quality one-way flow control valve designed for precise control of exhaust air flow in pneumatic systems. Its compact design, durable construction, and reliable performance make it an ideal choice for industrial automation applications. Equipped with a slotted screw adjustment and robust sealing materials, it ensures long-lasting operation under demanding conditions.
Manufacturer: FESTO
Type: One-Way Flow Control Valve
Model: GRLA-3/8-B

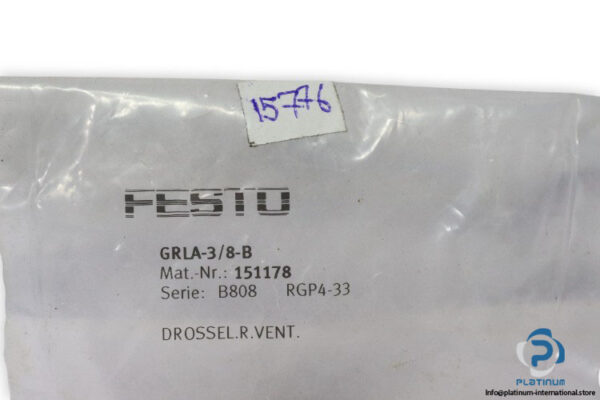

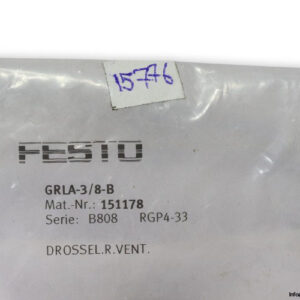

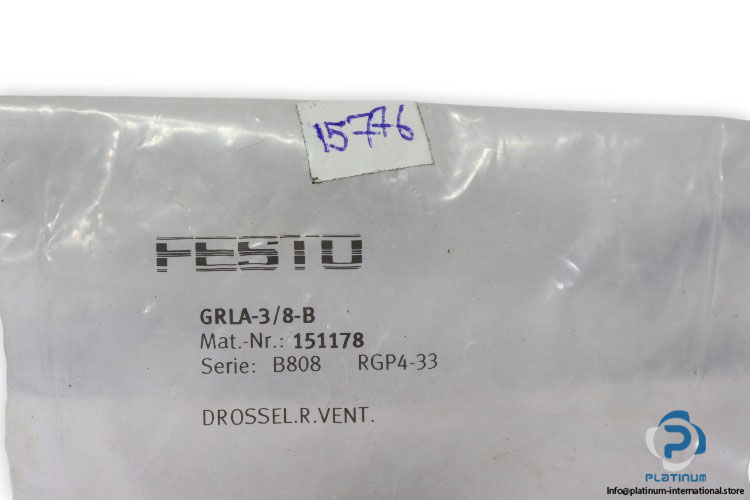

Part No.: 151178
Serial No.: B808
Code: RGP4-33
Series: GRLA
| Valve Function | Exhaust air flow control non-return function |
| Working Pressure | 0.3 / 10 bar |
| Standard Nominal Flow Rate (Flow Control Direction) | 1450 l/min |
| Standard Nominal Flow Rate (Blocked Direction) | 970 / 1600 l/min |
| Pneumatic Connection 1 | G3/8 |
| Pneumatic Connection 2 | G3/8 |
| Adjustment | Slotted screw |
| Mounting | Screw-In |
| Fluid Temperature Range | -10 / 60 °C |
| Seals Material | NBR |
| Hollow Bolt Material | Wrought aluminum alloy |
| Material of Adjusting Screw | Brass |
| Nut Material | Wrought aluminum alloy |
| Swivel Joint Material | Die-cast zinc |
