Festo 1512316 Motor Controller
Used
In stock2 unitsReady to ship
MOTOR CONTROLLER
FESTO CMMO-ST-C5-1-DIOP motor controller with 24 VDC supply, 5.7 A output, and integrated TCP/IP support. Features include I/O coupling for 32 positions, encoder sensor, and IP40 protection.24VDCAutomationCmmo-STCompactControllerDriveDriverFestoH-railIndustrialMotionmotormountedPositioningServoTcp/Ip
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

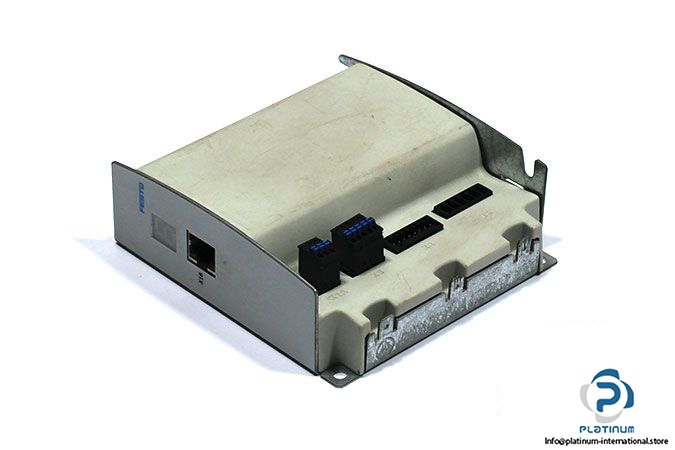

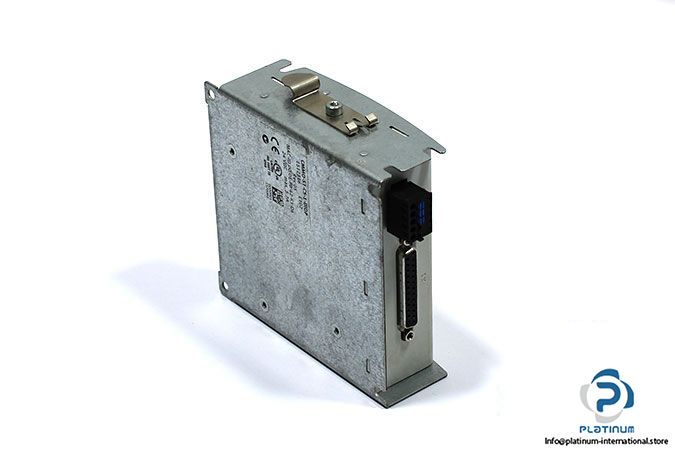

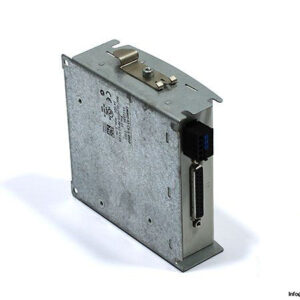

FESTO CMMO-ST-C5-1-DIOP MOTOR CONTROLLER
The FESTO CMMO-ST-C5-1-DIOP is a compact and efficient motor controller designed for precise control of motion systems. Built with integrated Ethernet connectivity, I/O coupling, and safety features, it is ideal for automation and mechatronic applications. This controller supports up to 32 positioning blocks and offers a seven-segment display for direct feedback during operation.
Manufacturer: Festo
Type: Motor Controller

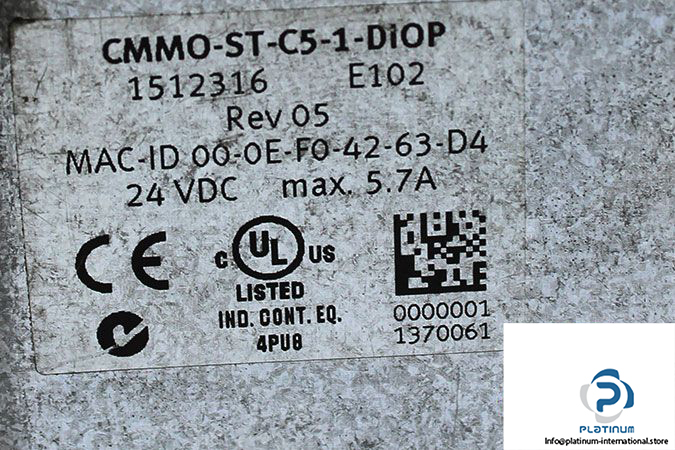

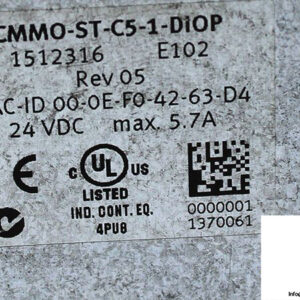

Model: CMMO-ST-C5-1-DIOP
Part No.: 1512316
MAC ID: 00-0e f0-42-63-d4
| Nominal Voltage, Load Supply | 24 VDC |
| Max. DC Link Voltage | 28 V |
| Nominal Current Load Supply | 6 A |
| Peak Current, Load Supply | 8 A |
| Nominal Output Current | 5.7 A |
| Braking Resistor | 15 Ohm |
| Line Filter | Integrated |
| Display | Seven-Segment Display |
| Mounting | On Sub-Base, Screwed Tightly, With H-Rail |
| Ethernet Supported Protocols | TCP/IP |
| Process Interfacing | I/O Coupling, For 32 Positioning Blocks |
| Rotor Position Sensor | Encoder |
| Digital Logic Inputs | 11 |
| Input Switching Logic | PNP |
| Ambient Temperature | 0 / 50 °C |
| Protection Class | IP40 |
| Dimensions | 113 x 108 x 38 mm |
