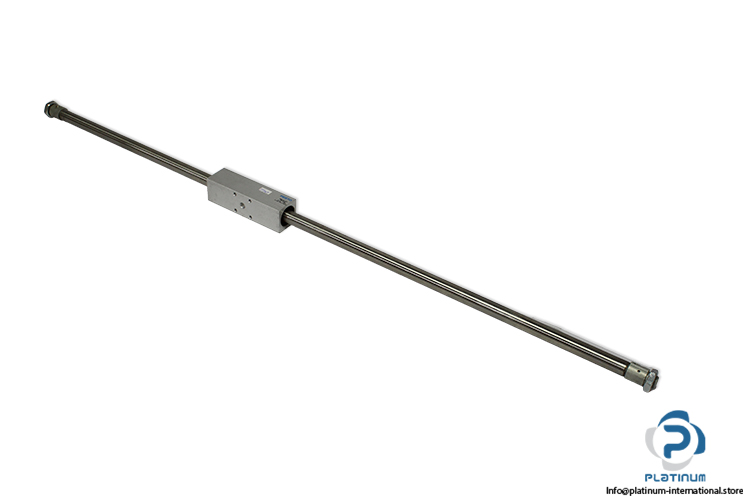

Festo 15222 Linear Actuator
New
In stock2 unitsReady to ship
Linear Actuator FESTO DGO-16-771-PPV-A-B pneumatic linear actuator with magnetic drive, adjustable cushioning, and 771 mm stroke for precise industrial automation applications.
16771771mmaActingactuaActuatorAlloyAutomationBconnectionCylinderDGODoubleDriveFestoHighIndustrialLinearM5MagneticPneumaticPPVSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 15222 |
| Stroke | 771 mm |
| Piston diameter | 16 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Driver principle | Force-locking (magnetic) |
| Position sensing | For proximity sensor |
| Symbol | 00991250 |
| Operating pressure | 1.7 bar ... 7 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air |
| Ambient temperature | -20 °C ... 60 °C |
| Cushioning length | 14 mm |
| Theoretical force at 6 bar, retracting | 121 N |
| Theoretical force at 6 bar, advancing | 121 N |
| Pneumatic connection | M5 |
| Cover material | Aluminum |
| Seals material | NBR / TPE-U(PU) |
| Housing material | High-alloy steel |
| Condition | New |
| SKU | 1096642 |
| Weight | 0,77 |
