Festo 154425 ISO Cylinder
Used
In stock4 unitsReady to ship
Festo DSNU-16-215-SA ISO Cylinder “ 16 mm bore, 215 mm stroke, double-acting, circular profile pneumatic cylinder with male rod end and 10 bar pressure capacity.
16215ActingActuatorAutomationboreCircularControlCylinderDoubleDSNU-16-215-SAFestoIndustrialISOmmMotionPneumaticPneumaticsStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

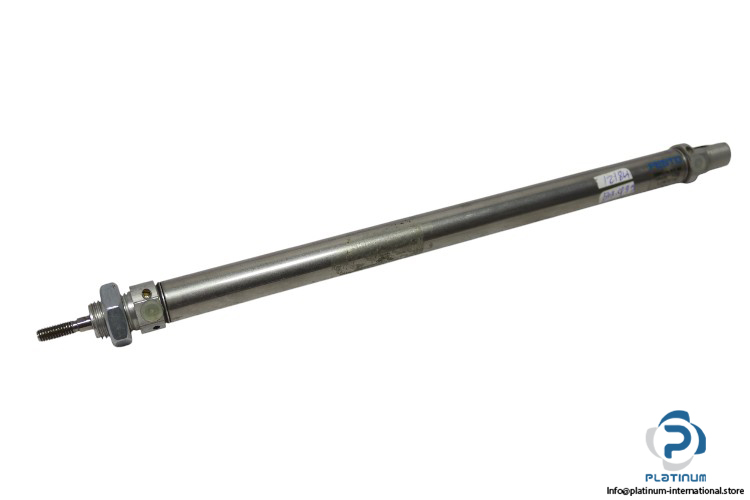

Festo DSNU-16-215-SA ISO Cylinder
The Festo DSNU-16-215-SA is a robust ISO-compliant pneumatic cylinder engineered for dynamic motion control in industrial automation systems. With a 16 mm bore and 215 mm stroke, it delivers reliable double-acting performance under high pressure conditions.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-16-215-SA
Part No.: 154425
| Bore Size | 16 mm |
| Stroke | 215 mm |
| Pneumatic Connection | 5 mm |
| Mode of Operation | Double Acting |
| Operating Pressure | Max. 10 bar |
| Piston Rod End | Male |
| Shape | Circular |
| Rod Direction | One Side |
