Festo 156509 Compact Cylinder
Used
In stock1 unitReady to ship
The FESTO Compact Cylinder (Model: ADVU-16-15-P-A) features a 15 mm stroke, 16 mm piston diameter, double-acting operation, and an aluminum alloy cylinder barrel. Max pressure: 10 bar. Pneumatic connection: 5 mm.
1516ActingAlloyAluminumBarrelCushioningCylinderdiameterDoubleElasticIndustrialmmPistonPneumaticPneumaticsStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

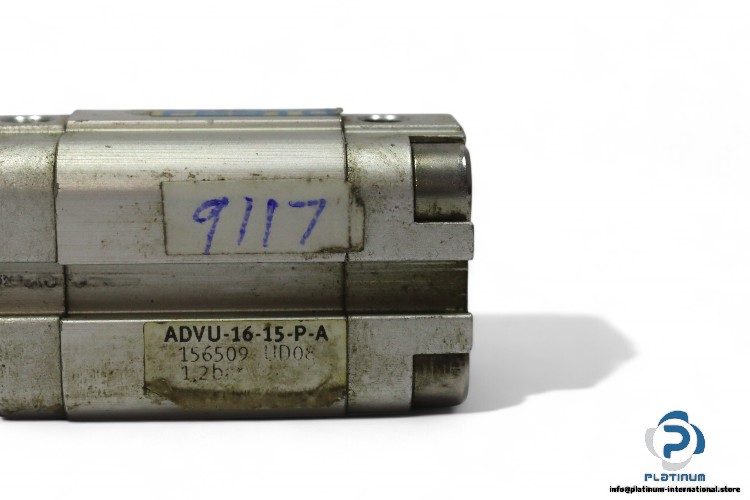

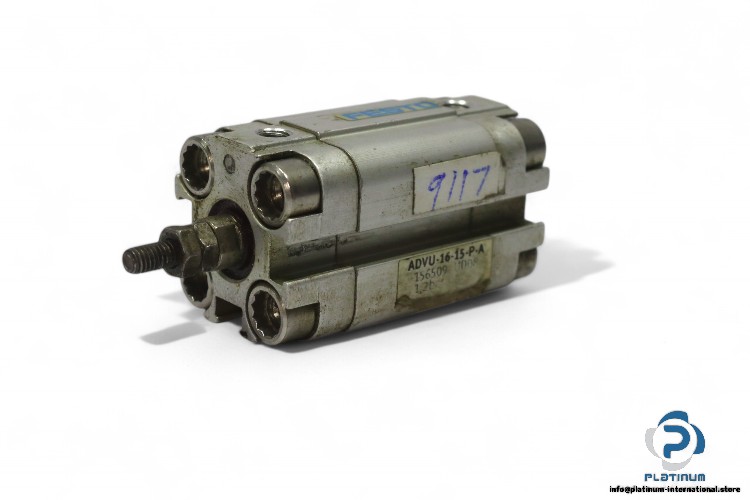

FESTO Compact Cylinder – Model ADVU-16-15-P-A
The FESTO Compact Cylinder (Model: ADVU-16-15-P-A, Part No.: 156509) is a highly reliable and efficient pneumatic actuator designed for industrial applications. With compact dimensions and robust construction, it ensures consistent performance even in demanding conditions.
Technical Specifications:
- Stroke Length: 15 mm
- Piston Diameter: 16 mm
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/plates at both ends
- Material (Cylinder Barrel): Wrought aluminium alloy
- Variant: Through piston rod
- Pneumatic Connection: 5 mm
- Temperature Range: -20 to 80 °C
Designed for precision and durability, this compact cylinder is suitable for a wide range of pneumatic applications, offering excellent performance and ease of installation.
