Festo 156511 Compact Cylinder
New
In stock3 unitsReady to ship
Compact Air Cylinder
The Festo ADVU-16-25-P-A is a double-acting compact air cylinder with a 16 mm piston diameter and 25 mm stroke. Featuring elastic cushioning rings, it operates at pressures ranging from 1.2 to 10 bar and is designed for reliable performance in industrial pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

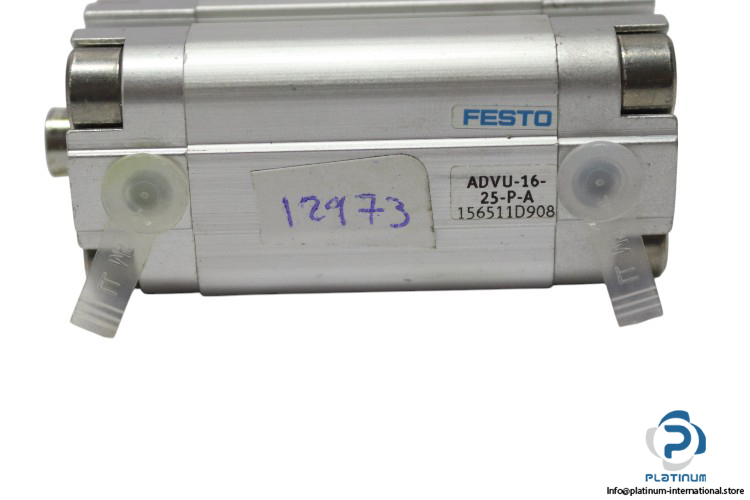

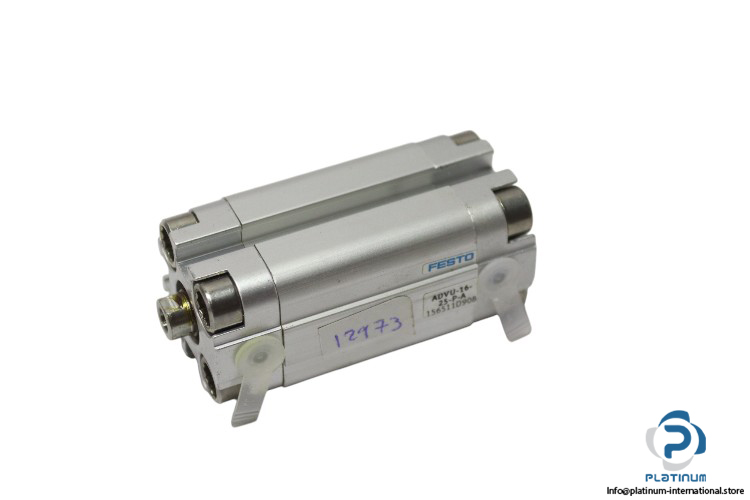

Festo ADVU-16-25-P-A “ Compact Air Cylinder
The Festo ADVU-16-25-P-A compact air cylinder is designed for high-performance pneumatic systems. Featuring a double-acting piston operation, it offers durable, reliable performance with elastic cushioning rings at both ends for smooth operation across a wide range of pressures and temperatures.
Manufacturer: Festo
Type: Compact Air Cylinder
Model: ADVU-16-25-P-A
Part No: 156511 D908
| Operating Medium | Compressed air |
| Design | Piston |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Piston Rod End | Female thread |
| Mode of Operation | Double-acting |
| Operating Pressure | 1.2 to 10 bar |
| Piston Diameter | 16 mm |
| Stroke | 25 mm |
| Pneumatic Connection | 5 mm |
| Cover Material | Wrought aluminum alloy |
| Material of Dynamic Seals | NBR |
| Piston Rod Material | High-alloy stainless steel |
| Ambient Temperature Range | -20 to 80°C |
