Festo 156517 Compact Cylinder
Used
In stock1 unitReady to ship
Compact Cylinder
The Festo ADVU-20-20-PA compact cylinder features a 20 mm stroke length, 20 mm piston diameter, and high-alloy stainless steel piston rod, ensuring reliable performance in pneumatic applications.20ADVU-20-20-PAAutomationCompactconnectionCushioningCylinderdouble-actingElasticFestohigh-precisionM5mmPistonPneumaticRODstainlessSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

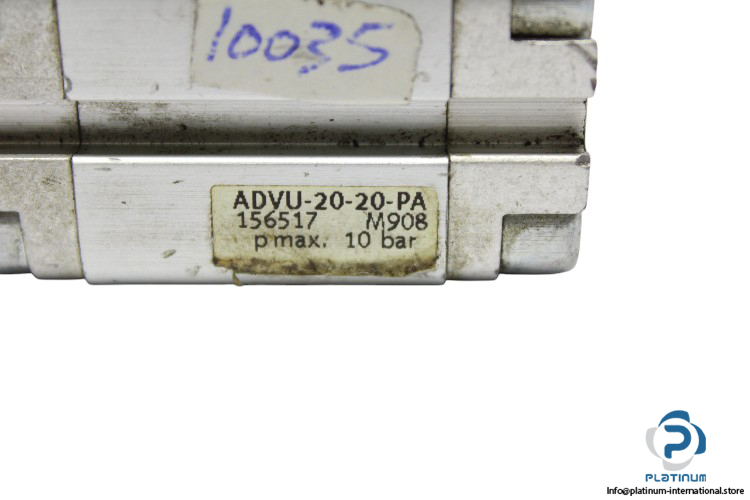

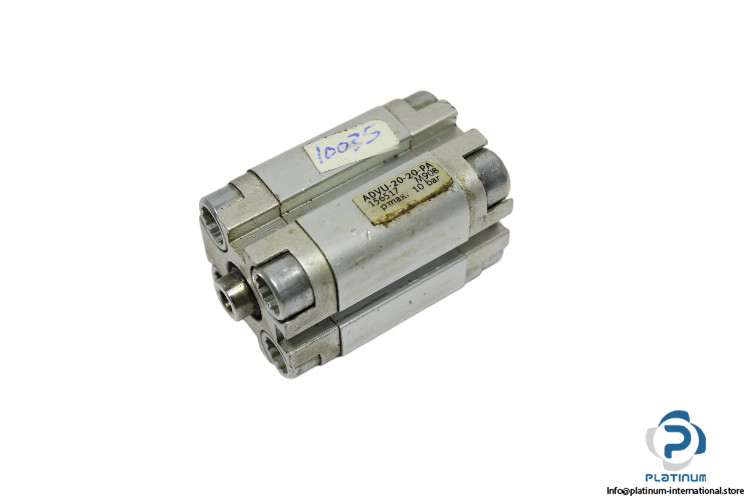

Festo ADVU-20-20-PA Compact Cylinder
The Festo ADVU-20-20-PA Compact Cylinder is a high-performance pneumatic actuator designed for precise motion control in compact spaces. With a durable aluminum alloy body and stainless steel piston rod, it ensures longevity and reliability in various industrial applications.
Manufacturer: Festo
Type: COMPACT CYLINDER
Model: ADVU-20-20-PA
Part No.: 156517
Designed for precise and efficient performance, this compact cylinder is ideal for applications where space is limited but high functionality is required.
| Material Cover | Wrought aluminum alloy |
| Piston Rod | High-alloy stainless steel |
| Stroke Length | 20 mm |
| Piston Diameter | 20 mm |
| Piston Rod Thread | Female thread |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Position Sensing | Via proximity switch |
| Variant | Piston rod at one end |
| Pneumatic Connection | M5 |
| Operating Pressure | 1 to 10 bar |
| Mode of Operation | Double-acting |
| Temperature Range | -20 to 80 °C |
| Operating Medium | Compressed air |
