Festo 156546 Compact Cylinder
New
In stock3 unitsReady to ship
compact cylinder
The FESTO Compact Cylinder ADVU-40-40-P-A (Part No. 156546) provides reliable double-acting motion control with elastic cushioning and a 40 mm piston diameter, ideal for industrial applications.40ActingCompactconnectionControlCushioningCylinderdiameterDoubleElasticG1/8IndustrialmmMotionPistonPneumatic
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

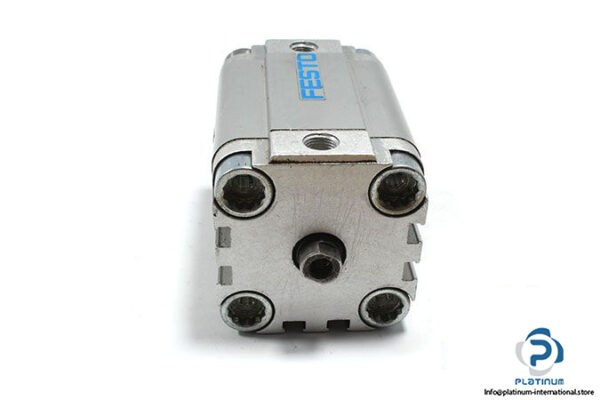

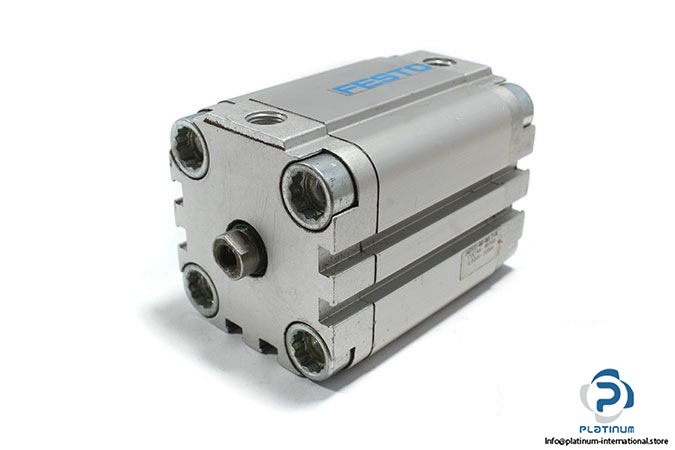

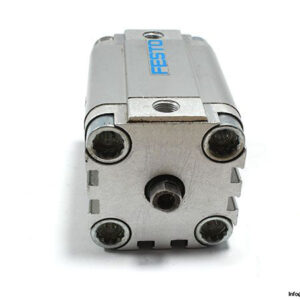

FESTO COMPACT CYLINDER
The FESTO Compact Cylinder (Model: ADVU-40-40-P-A, Part No. 156546) is designed for precise motion control in industrial applications. With a 40 mm piston diameter and a stroke length of 40 mm, this double-acting cylinder ensures reliable operation under high pressure conditions. Its elastic cushioning rings provide smooth operation, and the compact design allows easy integration into space-constrained systems.
Manufacturer: FESTO
Type: Compact Cylinder

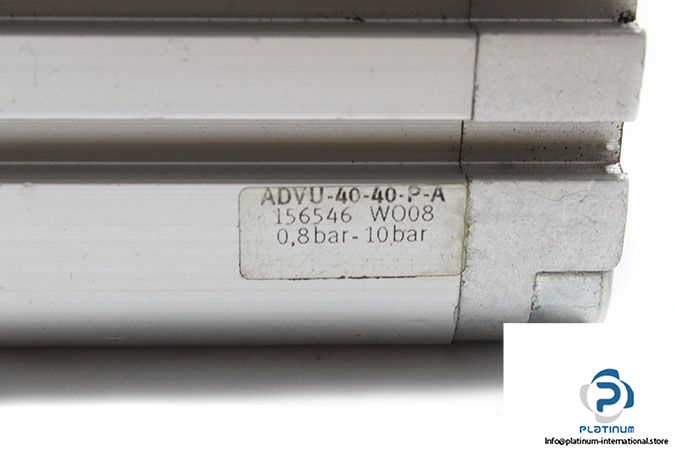

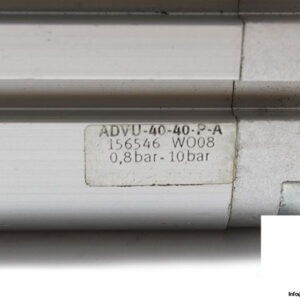

Model: ADVU-40-40-P-A
Part No.: 156546
Technical Specifications
- Stroke Length: 40 mm
- Piston Diameter: 40 mm
- Piston Rod Thread: Female
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Material of Cylinder Barrel: Wrought aluminum alloy
- Pneumatic Connection: G1/8
- Temperature: -20 … 80 °C
