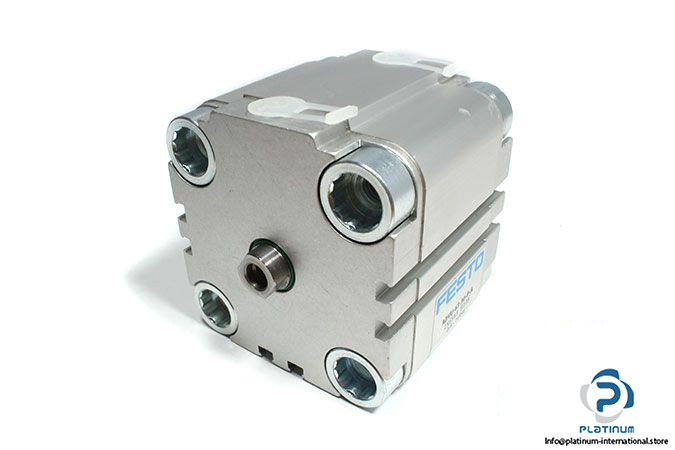

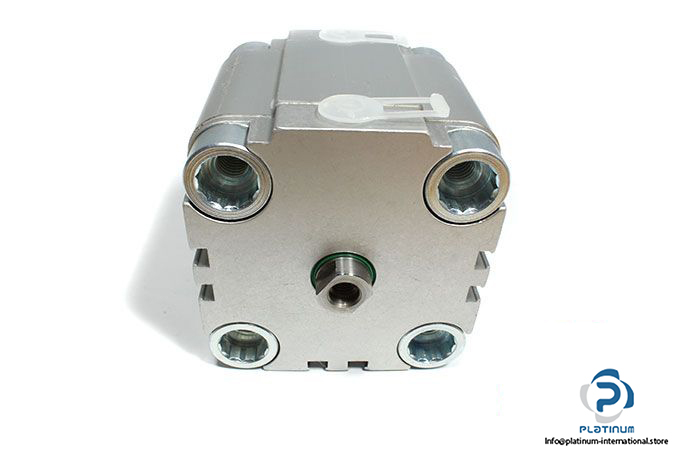

Festo 156563 Compact Cylinder

Manufacturer: FESTO

Type: Double Acting Compact Cylinder

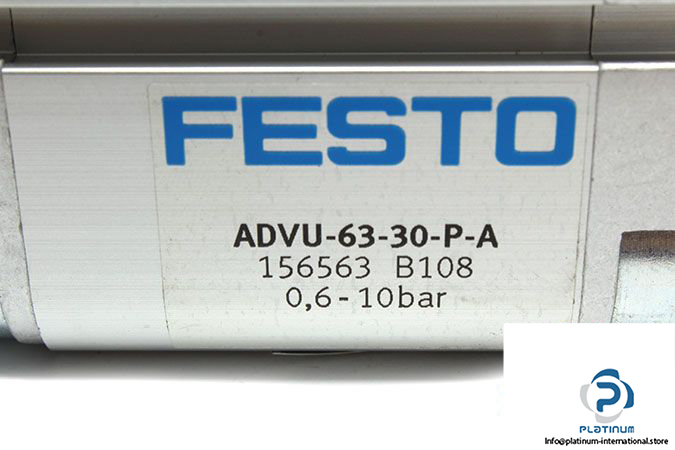

Model: ADVU-63-30-P-A

Part No.: 156563

Materials

,,Piston rod: High alloy stainless steel

,,Cylinder Tube: Wrought Aluminum alloy

Stroke Length: 30 mm

Piston Diameter: 63 mm

Piston rod end: Female thread

Operating Pressure: 0.8 … 10 bar

Mode of operation: Double-acting

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Pneumatic Connection: G 1/8

Temperature: -20 … 80 °C

Weight: 1.35 kg
