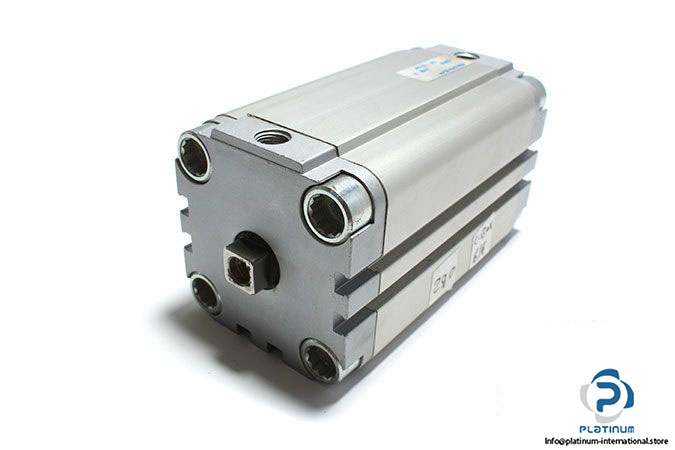

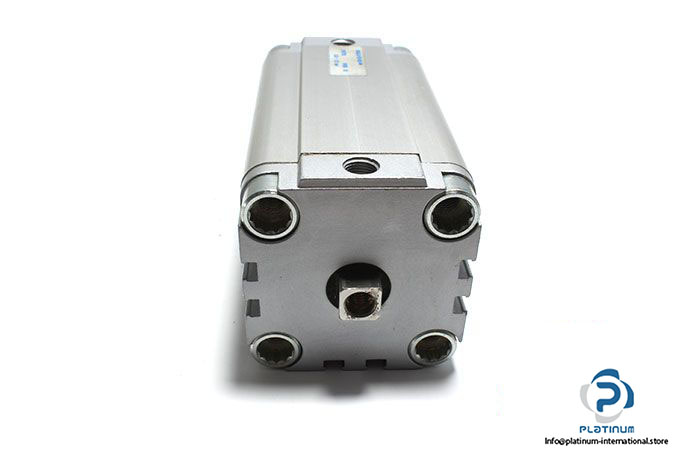

Festo 156730 Compact Cylinder

Manufacturer: FESTO

Type: Double Acting Compact Cylinder

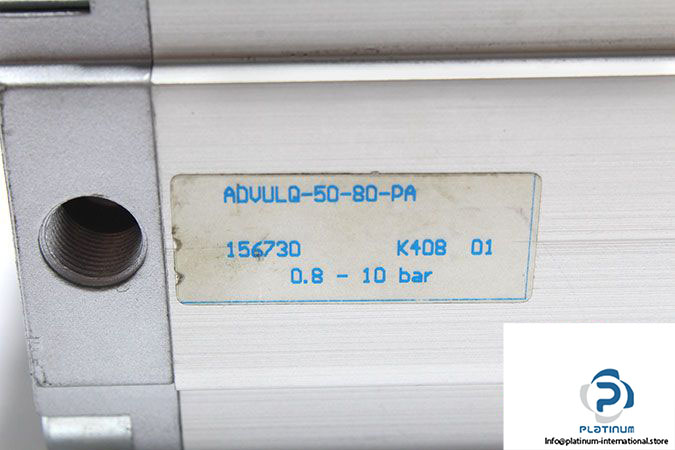

Model: ADVULQ-50-80-PA

Part No.: 156730

Materials

,,Piston rod: High alloy stainless steel

,,Cylinder Tube: Wrought Aluminum alloy

Piston Rod Type: Square piston rod

Stroke Length: 80 mm

Piston Diameter: 50 mm

Piston rod end: Female thread

Operating Pressure: 0.8 … 10 bar

Mode of operation: Double-acting

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Pneumatic Connection: G 1/8

Temperature: -20 … 80 °C

Weight: 1.090 kg
