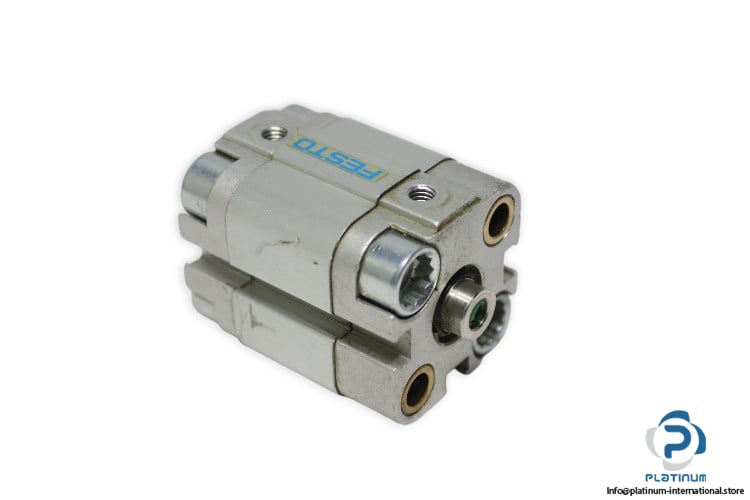

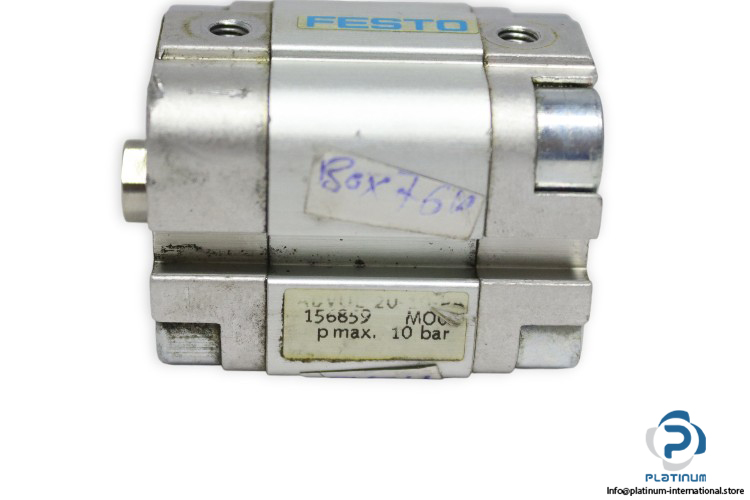

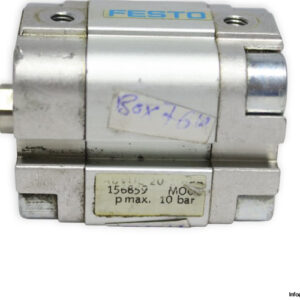

Festo 156859 Compact Cylinder

Manufacturer: FESTO
Type: Compact Cylinder
Model: ADVUL-20-10-PA
Part No.: 156859

Stroke Length: 10 mm
Piston Diameter: 20 mm
Piston rod thread: Female
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/pads at both ends
Position Sensing: For proximity sensing
Variant: Piston rod at one end
Pneumatic Connection: 5 mm
Piston rod material: High-alloy stainless steel
Material of cylinder barrel: Wrought aluminum alloy
Temperature: -20 … 80 °C
