Festo 156873 Compact Cylinder
Used
In stock1 unitReady to ship
Compact Cylinder
The Festo ADVUL-25-50-PA compact cylinder features a 50 mm stroke length, 25 mm piston diameter, and a double-acting operation, providing high efficiency and durability in pneumatic applications.2550ADVUL-25-50-PAAutomationCompactconnectionCylinderdiameterdouble-actingdurableFestohigh-performanceLengthM5mmPistonPneumaticRODstainlessSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

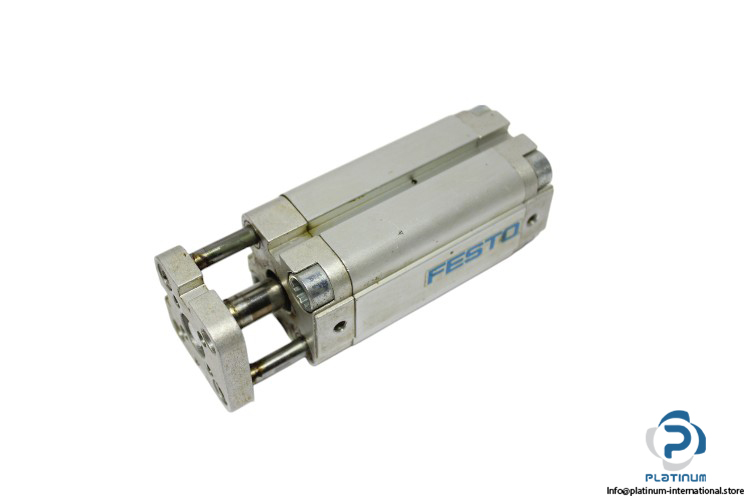

Festo ADVUL-25-50-PA Compact Cylinder
The Festo ADVUL-25-50-PA Compact Cylinder is a high-performance pneumatic actuator designed for applications requiring precise motion control in a compact form factor. With a durable construction and double-acting operation, this cylinder ensures efficient and reliable performance.
Manufacturer: Festo
Type: COMPACT CYLINDER

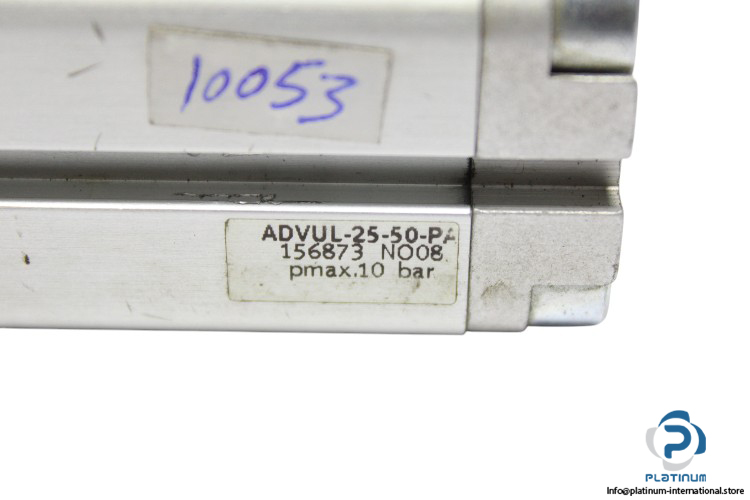

Model: ADVUL-25-50-PA
Part No.: 156873
This compact cylinder is ideal for applications requiring space-saving yet highly efficient linear motion, with reliable cushioning and precise position sensing for enhanced functionality.
| Material Cover | Wrought aluminum alloy |
| Piston Rod | High-alloy stainless steel |
| Stroke Length | 50 mm |
| Piston Diameter | 25 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Position Sensing | Via proximity switch |
| Variant | Piston rod at one end |
| Pneumatic Connection | M5 |
| Operating Pressure | 1 to 10 bar |
| Mode of Operation | Double-acting |
| Temperature Range | -20 to 80 °C |
| Operating Medium | Compressed air |
