Festo 157323 Swivel Flange
New
In stock3 unitsReady to ship
Swivel Flange
The FESTO SUA-40 Swivel Flange offers flexible mounting with aluminium alloy construction, corrosion resistance class CRC 2, and an operating range from minus 40 to 90 degrees Celsius.2accessoryAdjustableAlloyAluminiumComponentCRCCylinderFestoFlangeIndustrialMountingpartsPneumaticSUA-40SwivelSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

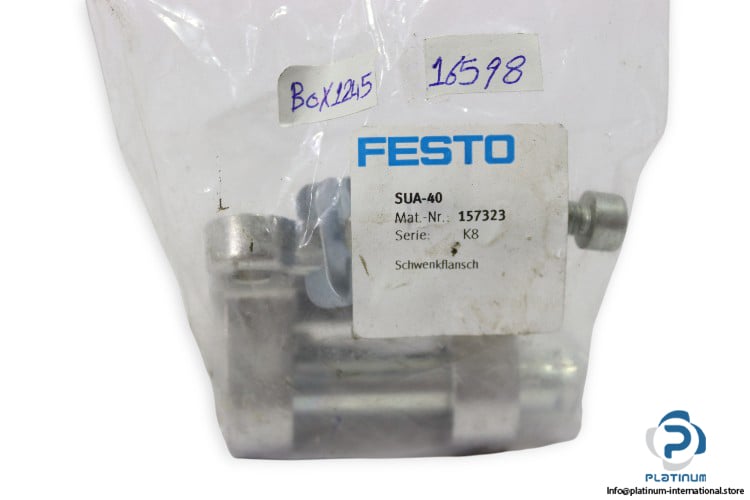

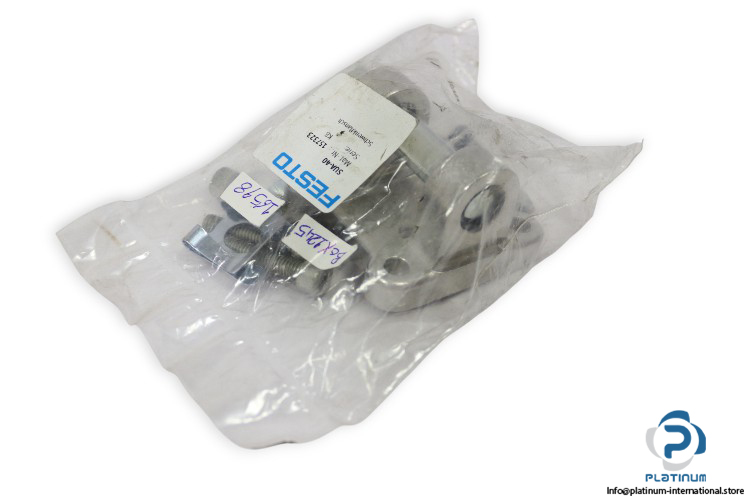

FESTO SUA-40 Swivel Flange
The FESTO SUA-40 Swivel Flange is a robust mounting accessory designed for pneumatic systems, offering smooth rotational adjustment and strong corrosion resistance. Built with high-quality materials, it ensures secure and flexible installation for cylinders and automation components.
Manufacturer: FESTO
Type: Swivel Flange
Model: SUA-40
MRN: 157323
Serial Number: K8
| Size | 40 |
| Mounting Position | Optional |
| Corrosion Resistance Class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) Conformity | VDMA24364-B1/B2-L |
| Ambient Temperature | minus 40 to 90 degree Celsius |
| Material Mounting | Wrought aluminium alloy |
| Material Bolt | Galvanised steel |
| Material Sleeve | Spring steel |
| Material Bearing | Polymer |
| Material Screws | Galvanised steel |
| Material Lock | Spring steel |
| Material Shaft | Steel |
| Protective Coating | Yes |
