Festo 158024 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
FESTO ISO Cylinder DNGU-40-400-PPV-A is designed for use with compressed air systems. With a bore diameter of 40 mm, stroke length of 400 mm, and a maximum pressure of 12 bar, it ensures reliable and efficient motion control in industrial applications.1/41240400AirbarboreCompressedconnectionCylinderdiameterDNGU-40-400-PPV-ADoubleFestoGIndustrialISOmmModeOperationPneumaticPressureShapeSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

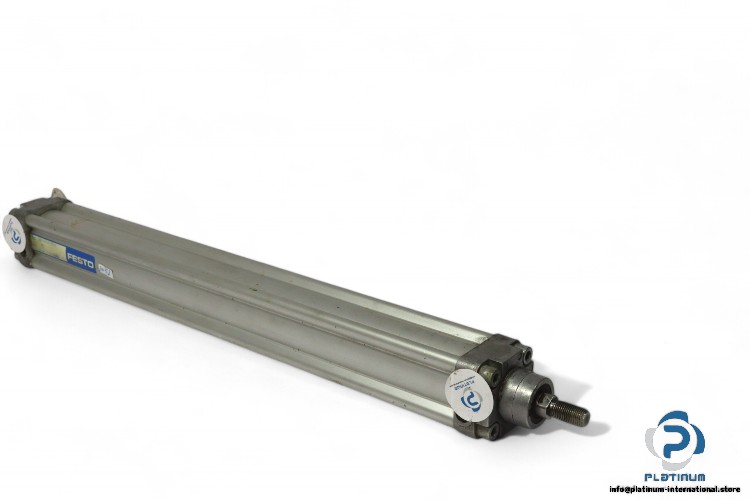

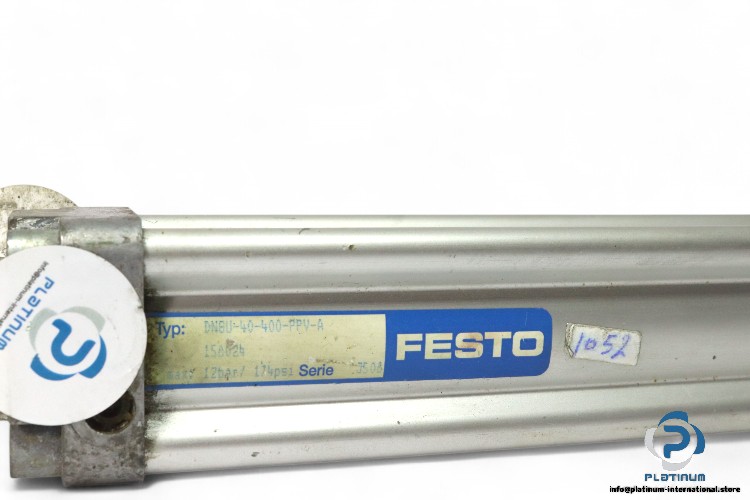

FESTO ISO Cylinder DNGU-40-400-PPV-A
The FESTO ISO Cylinder DNGU-40-400-PPV-A is a high-quality pneumatic cylinder designed for industrial applications. With a bore diameter of 40 mm and a stroke length of 400 mm, it is ideal for tasks requiring precise and efficient motion control. This cylinder is designed for use with compressed air and operates at a maximum pressure of 12 bar, making it suitable for various industrial and manufacturing environments.
Manufacturer: FESTO
Model: DNGU40400PPVA
Part No.: 158024
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 40 mm
- Stroke: 400 mm
- Bore x Stroke: 40 x 400 mm
- Rod Diameter: 16 mm
- Frame Dimensions: 54 x 535 mm
- Pneumatic Connection: G 1/4
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
