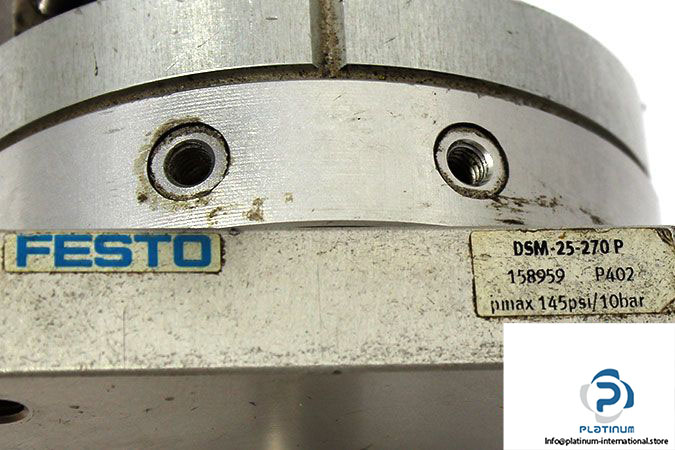

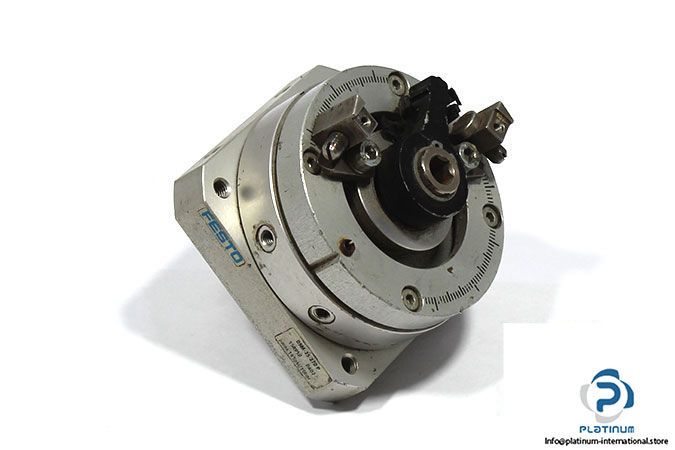

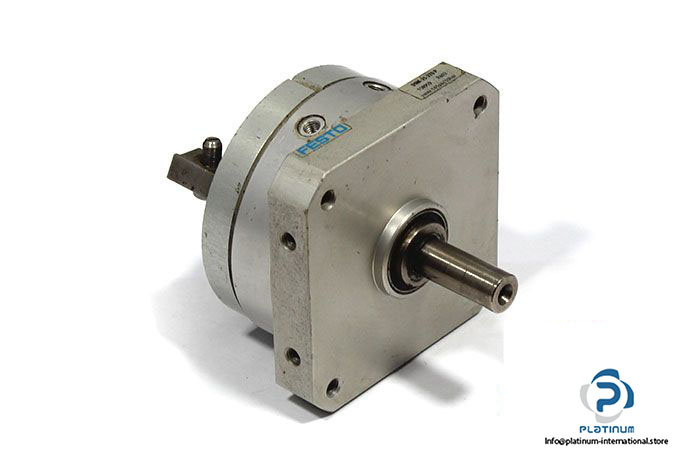

Festo 158959 Swivel Module

Manufacturer: Festo

Type: Swivel Module

Model: DSM-25-270-P

Alternative Model: DSM-25-270-P-A-B

Part No.: 158959

Alternative Part No: 547578

Size: 25

Cushioning Angle: 2.2 deg

Range of Swivel Angle: 0…270 deg

Swivel Angle: 270 deg

Operating Pressure: 1.5…10 bar

Fluid: Air

Design: Rotary Vane

Torque at 6 bar: 5 Nm

Pneumatic Connection: M5

Ambient Temperature: -10…60 °C

Mode of Operation: Double-Acting

Materials: Aluminum

Weight: 0.66 kg
