Festo 159259 Pressure Switch
Used
In stock1 unitReady to ship
Pressure Switch
FESTO PEV-1/4A-SW27 pressure switch with 1“10 bar range, changeover switching function, and G1/4 pneumatic connection for industrial compressed air systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

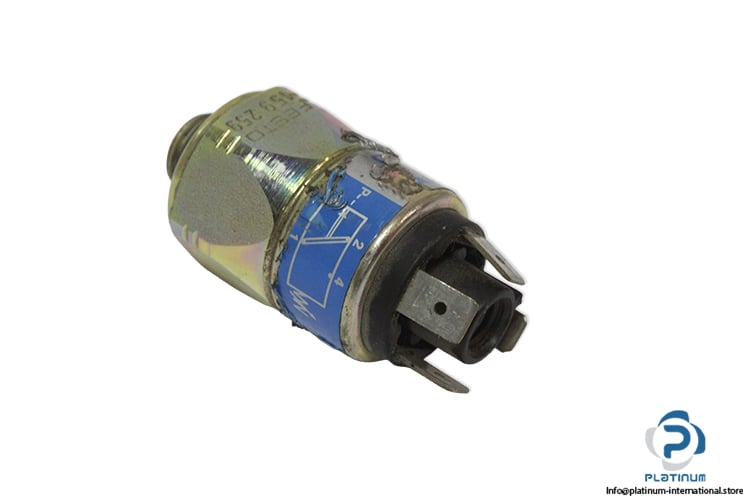

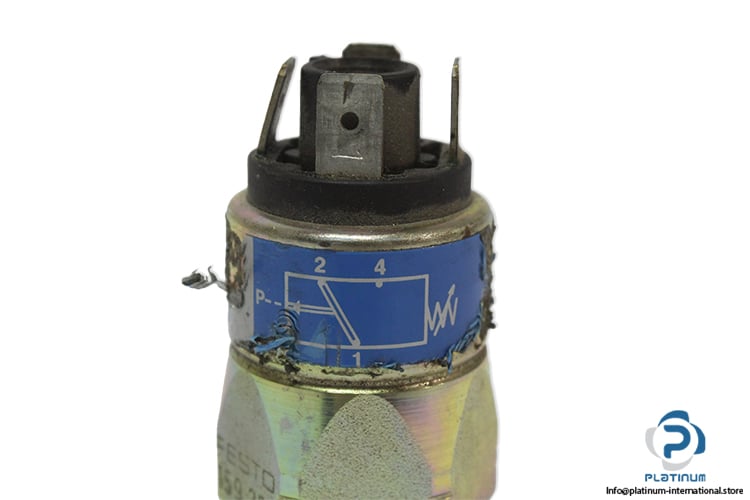

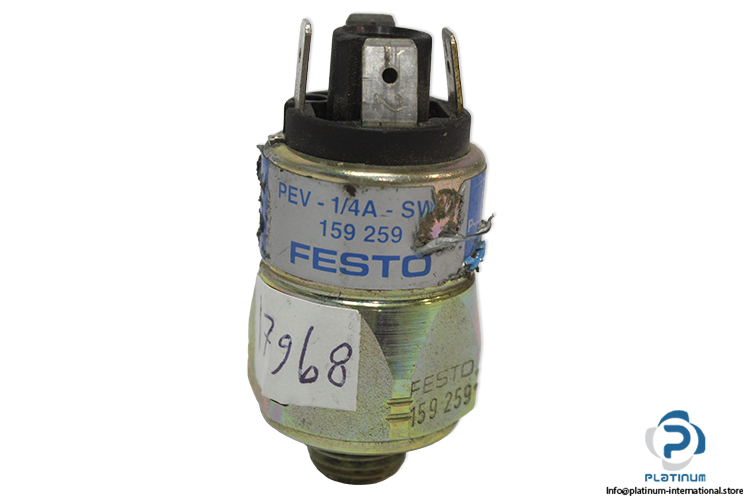

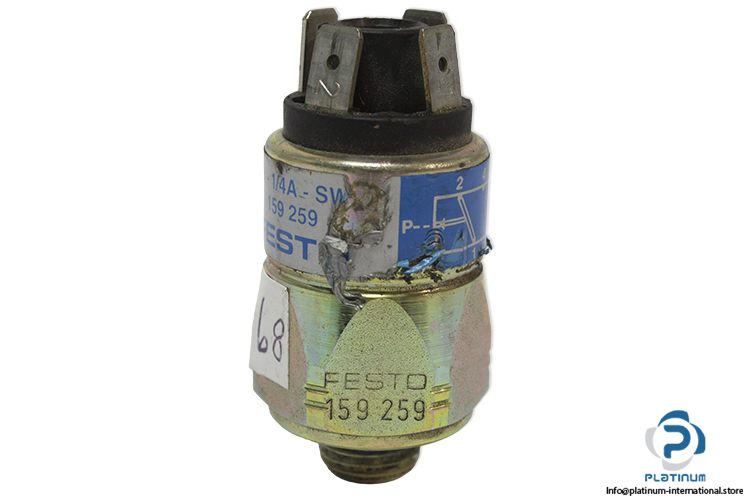

FESTO PEV-1/4A-SW27 Pressure Switch
The FESTO PEV-1/4A-SW27 is a pneumatic/electric pressure switch designed for reliable pressure monitoring and switching in compressed air systems. It supports a wide operating pressure range and features a robust changeover switch for dependable industrial performance.
Manufacturer: FESTO
Type: Pressure Switch
Model: PEV-1/4A-SW27
MRN: 159 259
| Measured Variable | Relative Pressure |
| Measurement Method | Pneumatic/Electric Pressure Transducer |
| Pressure Measuring Range | 1 bar / 10 bar |
| Operating Pressure | 1 bar / 10 bar |
| Operating Medium | Compressed Air |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Ambient Temperature | -20 to 100 °C |
| Switching Element Function | Changeover Switch |
| Max. Switching Frequency | 3 Hz |
| Max. Switching Output Voltage AC | 250 V |
| Max. Switching Output Voltage DC | 250 V |
| Max. Output Current | 4000 mA |
| Operational Voltage Range | DC 12 V / 250 V |
| Electrical Connection | 4-Pin Plugs |
| Type Of Mounting | Screw-In |
| Mounting Position | Optional |
| Pneumatic Connection | G1/4 |
